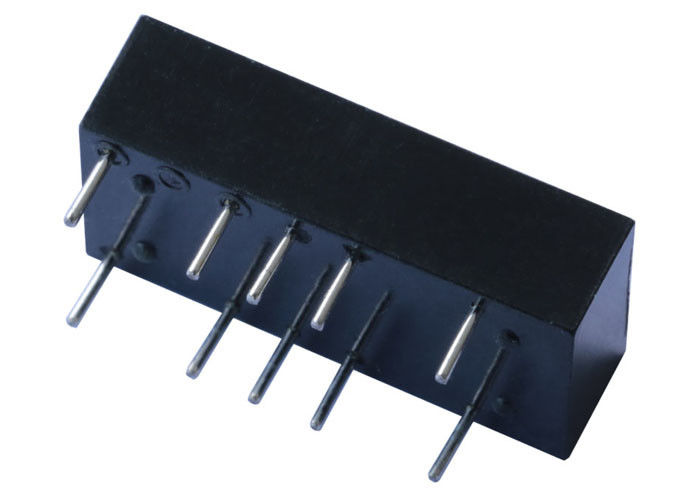

L1AN003-0 Magnetic 100 Base –T LAN Transformer Single Port DIP

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: L1AN003-0

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

single port transformer

,

quad port transformer

Item:
L1AN003-0
X'fmr:
10/100 Base-T
Application:
XDSL/ Wireless Products/ EPON
Pin:
12
Mounting:
DIP
Port:
1
Cross Rf:
L1AN003-0 => Lpxxxnl
Files:
PDF / Datasheet / 3D / IGS / Step /Stp
Item:
L1AN003-0
X'fmr:
10/100 Base-T
Application:
XDSL/ Wireless Products/ EPON
Pin:
12
Mounting:
DIP
Port:
1
Cross Rf:
L1AN003-0 => Lpxxxnl
Files:
PDF / Datasheet / 3D / IGS / Step /Stp
L1AN003-0 Magnetic 100 Base –T LAN Transformer Single Port DIP
L1AN003-0 Magnetic 100 Base –T LAN Transformer Single Port DIP



LAN Transformer L1AN003-0
10/100 Base –T Ethernet application
Pin to pin compatible by LINK-PP LPXXXNL

100 BASE –T DIP Type

Features:

Cable interface for isolation and low common mode emissions. Compliant with IEEE 802.3 and ANSI X3.263 standard Compliance with ROHS requirements



Application:

xDSL/ Wireless products/ EPON/ GPON/ IP Camera/ NAS/ STB/ Medical



Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL: 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss: -1.0dB MAX @ 1-65MHz
Return Loss: -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk: -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection: -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test: 1500Vrms MIN
Operating Temperature Range; 0℃ TO 70℃. / -40℃ TO 85℃.
