L1BN001-0 10/100 BASE –T LAN Filter DUAL PORTS DIP 20Pin

China L1BN001-0 10/100 BASE –T LAN Filter DUAL PORTS DIP 20Pin supplier
L1BN001-0 10/100 BASE –T LAN Filter DUAL PORTS DIP 20Pin supplier L1BN001-0 10/100 BASE –T LAN Filter DUAL PORTS DIP 20Pin supplier

Large Image :  L1BN001-0 10/100 BASE –T LAN Filter DUAL PORTS DIP 20Pin

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: L1BN001-0

Payment & Shipping Terms:

Minimum Order Quantity: 500/2000
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5kkpcs/month
Contact Now
Detailed Product Description
Part Number: L1BN001-0 Type: 100 Base-T
Application: EPON/ GPON/ IP Camera Port: 2
Pin: 20 Cross Rf: L1AN003-0 => LPXXXNL
Samples: Available 5 Pcs Files: PDF / Datasheet / 3D / IGS / Step /Stp

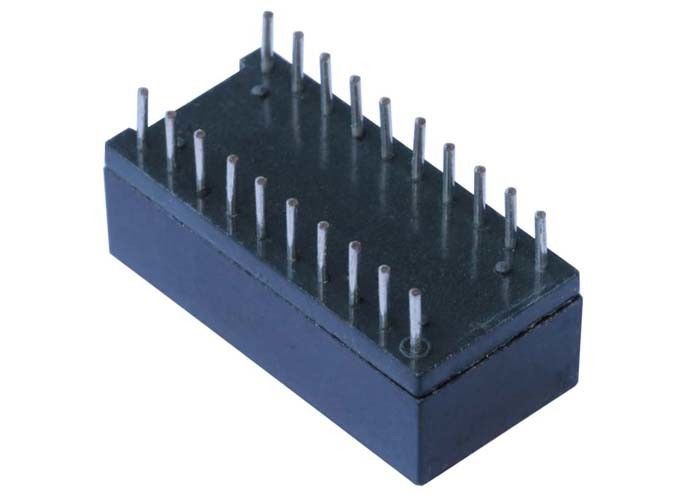

L1BN001-0 10/100 BASE –T LAN Filter DUAL PORTS DIP 20Pin



Lan Isolation Transformer L1BN001-0
10/100 Base –T Magnetics Modules Ethernet application
Pin to pin compatible by LINK-PP LPXXXNL



Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:CT
Inductance OCL
350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss
-1.0dB MAX @ 1-65MHz
Return Loss
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test
1500Vrms MIN
Operating Temperature Range
0℃ TO 70℃. / -40℃ TO 85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: summer

Tel: +8618026686530

Send your inquiry directly to us (0 / 3000)
