P/N: L22N001-0 Ethernet: 1000 Base-T
Cross Rf: L22N001-0=>LPXXXNL Number Of Ports: Single
Mounting: SMD Pins: 24
Document: PDF / Datasheet / 3D / IGS / Step /Stp Samples: Free

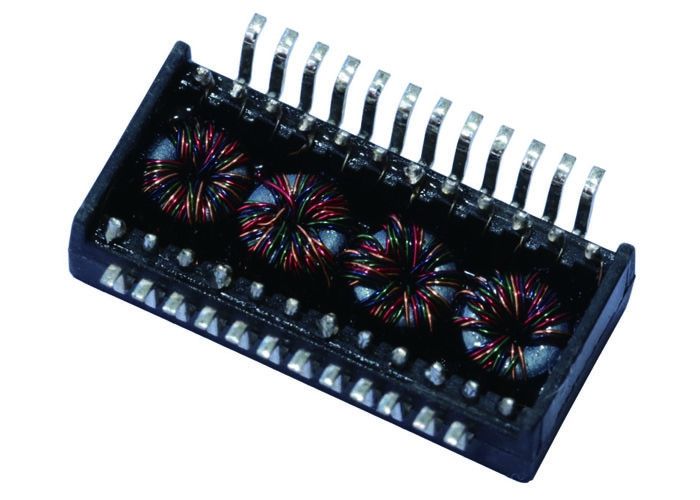

Single Port L22N001-0 1000 BASE –T Magnetics For Ethernet Lan Filter SMT 24Pin



Specification P/N Manufacturer Series
L22N001-0 L22N001-0 LINK-PP Transformer
Transformer Type Applications Mounting Type Turn Radio
Isolation and Data Interface 1000 Base-T Surface Mount 1:1
Unit Price
(USD)
PIN Samples Description
Supportive 24 Available 5 PCS XFMR 1000BASE-T SINGLE PORT 1:1 SMT



Application:

1 RF / Wireless Assembly

2 Signal Conditioning

3 Network Switches

4 VME / VXI Products



Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature

.......... -40° C to +85 °C  / 0° C to +70 °C
