1000 BASE –T Single Port L22N006-0 Gigabit Ethernet Transformer SMD

China 1000 BASE –T Single Port L22N006-0 Gigabit Ethernet Transformer SMD supplier
1000 BASE –T Single Port L22N006-0 Gigabit Ethernet Transformer SMD supplier 1000 BASE –T Single Port L22N006-0 Gigabit Ethernet Transformer SMD supplier

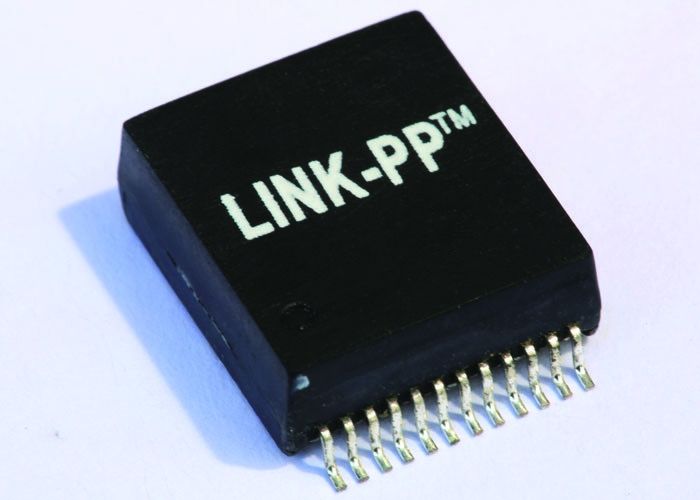

Large Image :  1000 BASE –T Single Port L22N006-0 Gigabit Ethernet Transformer SMD

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: L22N006-0

Payment & Shipping Terms:

Minimum Order Quantity: 400/2000
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4.5kkpcs/month
Contact Now
Detailed Product Description
Item: L22N006-0 Ethernet: 1000 Base-T Single Port
Equivalent: L22N006-0=>LPXXXNL Mounting: SMD
Pins: 24 Files: PDF / Datasheet / 3D / IGS / Step /Stp
Samples: Available 3 PCS

Single Port L22N001-0 1000 BASE –T Magnetics For Ethernet Lan Filter SMT 24Pin



Pin to pin L22N006-0
Factory PN LPXXXNL
Manufacturer Series L22N006-0
Manufacturer LINK-PP
Cross References Equivalent to L22N006-0
Series Transformer
REACH Compliant Yes
EU RoHS Compliant Yes
Description XFMR 1000BASE-T SINGLE PORT 1:1 SMD
Documents Available PDF/3D/ISG/Stp/Step/Datasheet
PIN 24
speed 1000 Base-T
Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application GENERAL PURPOSE
Isolation Voltage 1500.0 V
Mounting Feature SURFACE MOUNT
Number of Functions 1
Primary Inductance 350
Terminal Finish TIN
Samples Available 5 pcs
Turns Ratio (Np:Ns) 1:1; 1:1



Application:

1 Network Cards and Network Controllers

2 Programmable Automation Controller (PAC) Modules

3 Coordinate Measuring Machines (CMM)

4 Rigid-Flexible PCB Assembly
