Single Port L22N009-0 Ethernet Transformer 1000base-t Magnetics SMD

China Single Port L22N009-0 Ethernet Transformer 1000base-t Magnetics SMD supplier
Single Port L22N009-0 Ethernet Transformer 1000base-t Magnetics SMD supplier Single Port L22N009-0 Ethernet Transformer 1000base-t Magnetics SMD supplier

Large Image :  Single Port L22N009-0 Ethernet Transformer 1000base-t Magnetics SMD

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: L22N009-0

Payment & Shipping Terms:

Minimum Order Quantity: 500/1000
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4.6kkpcs/month
Contact Now
Detailed Product Description
Item: L22N009-0 Ethernet: 10/100/1000 Base-T
Cross Rf: L22N009-0=>LPXXXNL Pins: 24
Files: PDF / Datasheet / 3D / IGS / Step /Stp Samples: Available 5 PCS

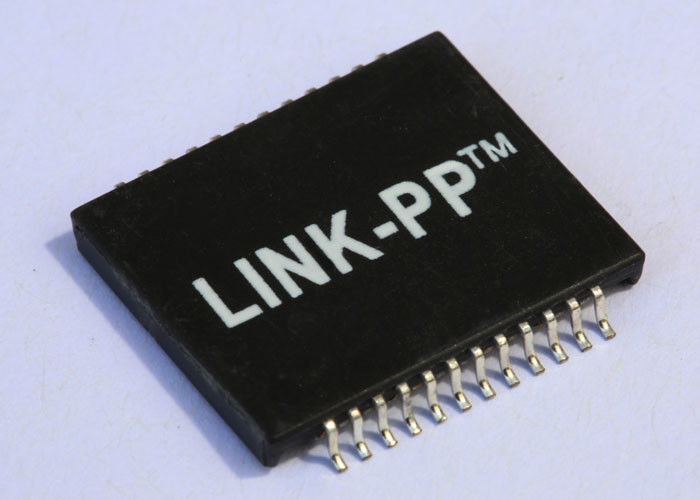

Single Port L22N009-0 Ethernet Transformer 1000base-t Magnetics SMD
  • L22N009-0 Product Features:
  1. Single Port Gigabit Ethernet Transformer/Choke
  2. Cross rf L22N009-0
  3. IEEE802.3ab Compliant
  4. UL/EN60950 Recognized
  5. Compliance with ROHS requirements

  6. 100% Tested (Not Just Batch Tested)

  7. 1500Vrms Hi-Pot
  8. Patented Open Frame Construction
  9. L22N009-0 Compatible / Cross / Pin to Pin
  10. Delivery Time:4-5 Weeks After Orders
  11. Free Samples Are Available
  12. Provide New Design For Customer Requirements
Specification P/N Manufacturer Series
L22N009-0 Lpxxxnl LINK-PP Transformer
Transformer Type Applications Mounting Type Turn Radio
Isolation and Data Interface 1000 Base-T Surface Mount 1:1
Unit Price
(USD)
PIN Samples Description
Supportive 24 Available XFMR 1000BASE-T SINGLE PORT 1:1 SMT
Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL: 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss: -1.0dB MAX @ 1-65MHz
Return Loss: -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk: -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection: -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test: 1500Vrms MIN
Operating Temperature Range: 0℃ TO 70℃. / -40℃ TO 85℃.



Application:

1 Embedded Systems

2 PCMCIA Networking Cards

3 Cable Assembly Services

4 Fibre Channel Products
