L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer

China L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer supplier
L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer supplier L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer supplier

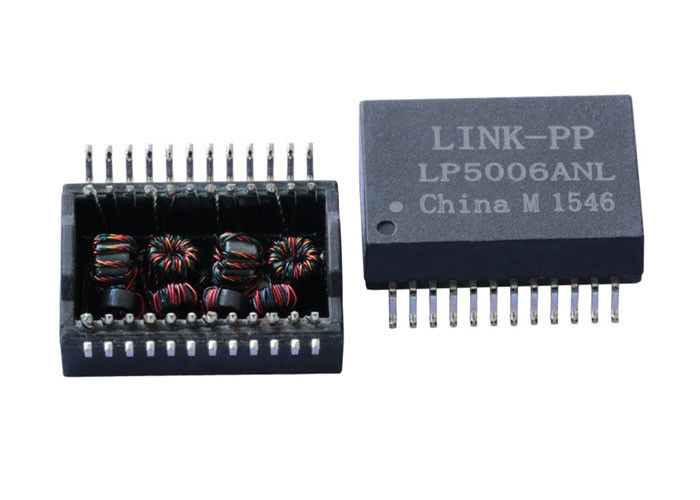

Large Image :  L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: L22T001-3

Payment & Shipping Terms:

Minimum Order Quantity: 400/1600
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4.8kkpcs/month
Contact Now
Detailed Product Description
Item: L22T001-3 Ethernet: 1000 Base-T
Cross Rf: L22T001-3=>LP5006ANL Pins: 24
Files: PDF / Datasheet / 3D / IGS / Step /Stp Samples: Available 4 PCS
Port: Single Price: Supportive

L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer



1.Single Port Gigabit Ethernet Transformer LP5006ANL

2.Cross rf L22T001-3 Pin to Pin Compatible

3.1000 Base-T Magnetics Modules Ethernet application



Application:



1.Rugged computers

2.Cable Assemblies

3.Data Output Modules

4.PCI Products



Pin to pin L21N002-0
Series Transformer REACH Compliant: Yes
Number of Ports: SIngle / Dual EU RoHS Compliant: Yes
Manufacturer LINK-PP China RoHS Compliant: Yes
Speed: 1000 Base-T Number of Functions: 1
Package: SMD Turns Ratio (Np:Ns) 1:1; 1:1
PIN 24 Status: Active
Turn Ratio(±2%): TX=1CT:1CT RX=1CT:CT
Inductance OCL: 350uH MIN/@ 100KHz,0.1V,8mA DC Bias
Insertion Loss: -1.0dB MAX @ 1-65MHz
Return Loss: -20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
Cross talk: -40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
Common Mode Rejection: -30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
Hipot Test: 1500Vrms MIN
Operating Temperature Range: 0℃ TO 70℃. / -40℃ TO 85℃.



NOTES:
1.Designed to support application
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias .
4.Maximum Reflow Temperature is 250℃,5 Sec.

5.Meets IEEE 802.3 specification
6.UL Certification: File Number E484635

7.Compliance with ROHS requirements

8.100% Tested (Not Just Batch Tested)

L22T001-3 1000base-t Magnetics Module Single Port SMD 24pins Transformer
