Product Details
Place of Origin: GuangDong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: L24N001-0
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item: |
L24N001-0 |
Apllication: |
1000 Base-T Network |
Port: |
Dual 1x2 |
Files: |
PDF / Datasheet / 3D / IGS / Step /Stp |
Mounting: |
SMD |
Alternate Rf: |
L24N001-0=>LPXXXNL |
Item: |
L24N001-0 |
Apllication: |
1000 Base-T Network |
Port: |
Dual 1x2 |
Files: |
PDF / Datasheet / 3D / IGS / Step /Stp |
Mounting: |
SMD |
Alternate Rf: |
L24N001-0=>LPXXXNL |
NOTES:

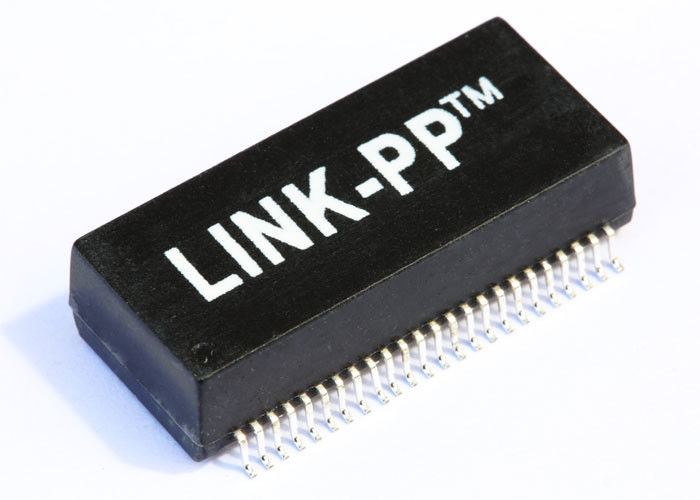

1.Gigabit Lan Transformer L24N001-0
2.Designed to support dual gigabit ethernet
3.100% Tested (Not Just Batch Tested)
4.Meets IEEE 802.3 specification
5.UL Certification: File Number E484635
6.Compliance with ROHS requirements
7.pin to pin L24N001-0 , Compatible Equivalent Part
Application:
1.Bore and ID Gages
2.Loop Powered Devices
3.Ruggedized Computers
4.Touch Screen Sensors
| Turn Ratio(±2%): | TX=1CT:1CT RX=1CT:CT |
| Inductance OCL | 350uH MIN/@ 100KHz,0.1V,8mA DC Bias |
| Insertion Loss | -1.0dB MAX @ 1-65MHz |
| Return Loss | -20dB MIN @ 1-10MHz |
| -16dB MIN @ 10-30MHz | |
| -12dB MIN @ 30-60MHz | |
| -10dB MIN @ 60-100MHz | |
| Cross talk | -40dB MIN @ 1-30MHz |
| -35dB MIN @ 30-60MHz | |
| -30dB MIN @ 60-100MHz | |
| Common Mode Rejection | -30dB MIN @ 1-50MHz |
| -20dB MIN @ 50-150MHz | |
| Hipot Test | 1500Vrms MIN |
| Operating Temperature Range | 0℃ TO 70℃. / -40℃ TO 85℃. |
