L14N001-2 Gigabit Lan Magnetic Dual Port 1000 BASE –T Transformer DIP

China L14N001-2 Gigabit Lan Magnetic Dual Port 1000 BASE –T Transformer DIP supplier
L14N001-2 Gigabit Lan Magnetic Dual Port 1000 BASE –T Transformer DIP supplier L14N001-2 Gigabit Lan Magnetic Dual Port 1000 BASE –T Transformer DIP supplier

Large Image :  L14N001-2 Gigabit Lan Magnetic Dual Port 1000 BASE –T Transformer DIP

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE,ISO9001:2008
Model Number: L14N001-2

Payment & Shipping Terms:

Minimum Order Quantity: 500/2000
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5kkpcs/month
Contact Now
Detailed Product Description
Item: L14N001-2 X'fmr: 1000 Base-T
Application: EPON/ GPON/ IP Camera Files: PDF / Datasheet / 3D / IGS / Step /Stp
Compatible: L14N001-2=>LPxxxNL Samples: Available
Turn Radio: 1:1

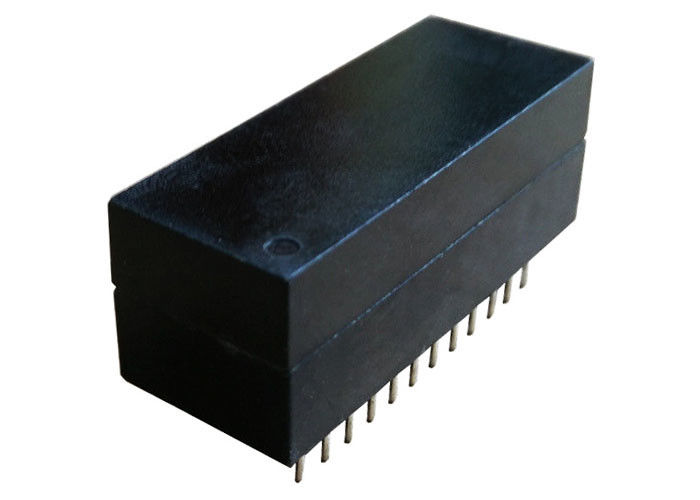

L14N001-2 Gigabit Lan Magnetic Dual Port 1000 BASE –T Transformer DIP



Pin to pin L14N001-2
Series: Transformer REACH Compliant: Yes
part number: L14N001-2 EU RoHS Compliant: Yes
Manufacturer: LINK-PP China RoHS Compliant: Yes
Speed: 1000 Base-T Number of port: 2
Package: DIP Turns Ratio (Np:Ns) 1:1; 1:1
cross rf: L14N001-2=>LPxxxNL Status: Active



Application

1 PMC and XMC Modules

2 Projection Screens

3 Ruggedized Computers

4 PCMCIA and PC Card Products



Electrical Specifi cations @ 25 °C
Inductance ........................... 350 µH min.
with 8 mA DC bias @ 100 KHz, 0.2 V
Leakage Inductance .......... 0.50 µH max.
@ 100 KHz, 0.2 V
Interwinding Capacitance ........25 pF typ.
@ 100 KHz, 0.2 V
DC Resistance .................... 0.90 Ω max.
Insertion Loss .....................0.3-100 MHz
-1.1 dB max.
Return Loss (dB min.)
0.3-30 MHz .....................................-18
40 MHz .........................................-14.4
50 MHz .........................................-13.1
60-80 MHz ......................................-12
Cross Talk (dB min.)
0.3-30 MHz .....................................-35
60-100 MHz ....................................-28
Common Mode Rejection (dB min.)
0.3-30 MHz .....................................-40
60 MHz ............................................-35
80-100 MHz ....................................-30
Turns Ratio ........................... 1 CT:1±5 %
Isolation Hi-Pot ....1500 VAC 1 mA 1 sec.
Operating Temperature

.......... -40° C to +85 °C / 0° C to +70 °C



Tag: Gigabit Ethernet Transformer,1000Base-T LAN Filter
