L18N003-0 Magnetic Lan Quad Port 1000 Base-T Isolation Transformer DIP

China L18N003-0 Magnetic Lan Quad Port 1000 Base-T Isolation Transformer DIP supplier
L18N003-0 Magnetic Lan Quad Port 1000 Base-T Isolation Transformer DIP supplier L18N003-0 Magnetic Lan Quad Port 1000 Base-T Isolation Transformer DIP supplier

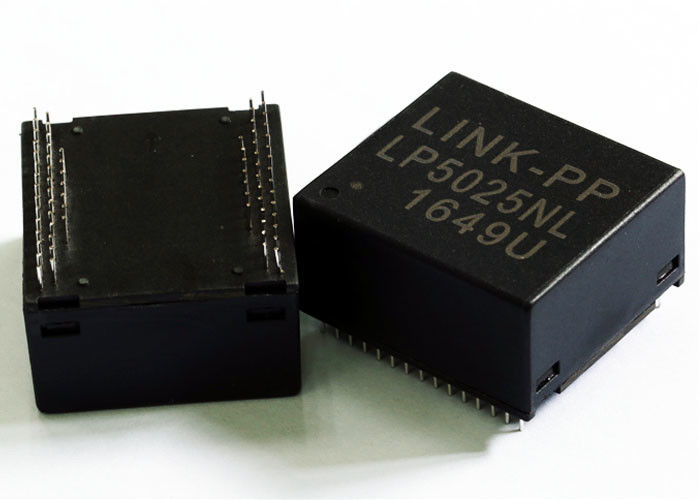

Large Image :  L18N003-0 Magnetic Lan Quad Port 1000 Base-T Isolation Transformer DIP

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: L18N003-0

Payment & Shipping Terms:

Minimum Order Quantity: 400/1800
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5.1kk pcs/month
Contact Now
Detailed Product Description
P/N: L18N003-0 Series: Quad Port GigE Transformer
Mounting: DIP Document: PDF / Datasheet / 3D / IGS / Step /Stp
Alternate: L18N003-0=>LPxxxNL Samples: Available 6 Pcs

L18N003-0 Magnetic Lan Quad Port 1000 Base-T Isolation Transformer DIP



NOTES:

1 Lan Isolation Transformer L18N003-0
2 1000 Base –T Magnetics Modules Ethernet application
3 Pin to pin compatible by LINK-PP LPXXXNL

Designed to support Quad gigabit ethernet



Features:

Cable interface for isolation and low common mode emissions. Compliant with IEEE 802.3ab standard for 1000 BASE-T. Compliance with ROHS requirements



Application:

xDSL/ Wireless products/ EPON/ GPON/ IP Camera/ NAS/ STB/ Medical



Electrical Specifications @25℃ Type : Balance low pass 100Ω impedance
Insertion loss : 1-50MHz -0.5 dB Max
50-125MHz -1.0 dB Max
125-200MHz -2.0 dB Max
Return loss : 1~40MHz -20 dB Minload 100Ω
40-200MHz -20+15*log(Freq MHz/40MHz) dB Minload 100Ω
Reflected CM to Diff Conversion(REF) 1MHz -30 dB Min
50MHz -30 dB Min
100MHz -27 dB Min
200MHz -24 dB Min
CM to DM Conversion(REF) 1-125MHz -35 dB Min
Reflected Diff to CM Conversion(REF) 1-10MHz -48 dB Min
10-200MHz -48+19*log(Freq MHz/10MHz) dB Min
CM to CM Attenuation (REF) 1-200MHz -25 dB Min
Cross Talk (REF) 1-125 MHz -30 dB Min
125-200 MHz -25 dB Min
Inductance @ 100KHz, 0.1V, 8mA DC BIAS 180uHMin
HiPot Test @ 1500 Vrms
Turns Ratio @ 1:1±5%
Operating Temperature Range 0°C to +70°C / -25°C to +105°C



Tag: 1000Base-T LAN Filter,Gigabit Ethernet Transformer
