Item No1: |
HA-159 |
Category: |
Isolation Transformer |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
12.7mm X 7.15mm X 6.2mm |
LINK-PP PN: |
LP1188NL |
Item No1: |
HA-159 |
Category: |
Isolation Transformer |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
12.7mm X 7.15mm X 6.2mm |
LINK-PP PN: |
LP1188NL |

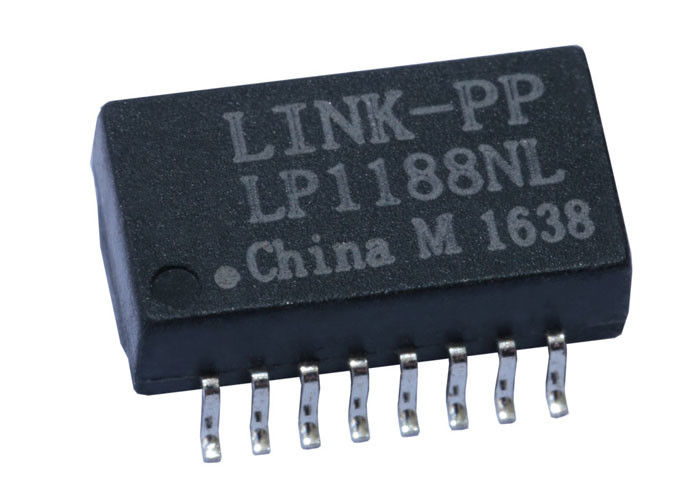

| HA-159 | Halo Transformer | 10/100 BASE-T | SMD Transformer |
Single Port 10/100BASE-TX Transformer
IEEE802.3ab Compliant , 1500Vrms Hi-Pot
HA-159 Transformer Cross LP1188NL
Competitive Advantage
Designer / Manufacturer for 18 years.
2500 Works, 4 plants
Definitely Pass Fluke network analyzer
Stock or 4 weeks.
Flexible design according to customers' required informations without any exral fee.
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| Single GE | Ethernet | 1:1 | IEEE 802.3 |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel , Carton | -- | SMT/SMD | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 16 Pins | -- | 1500 Vrms | --- |
Electrical Specifications @25℃
1.Turns Ratio: 1CT∶1CT
2.Insertion Loss:
1-100MHz:-1.1dB MAX
3.Return Loss(dB MIN):
30MHz:-20 40MHz:-14
50MHz:-11.5
4.Crosstalk(dB MIN):
30MHz:-45 60MHz:-40
100MHz:-35
5.DCMR(dB MIN):
30MHz:-42 60MHz:-37
100MHz:-33
6.Hipot: 1500Vrms MIN
7.Operating Temperature: -40℃～+85℃.
NOTES:
1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3 / af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing
