S558-5999-T2 Magnetic 1000 Base-T Cross LP5008NL Lan Isolation Transformer DIP

China S558-5999-T2 Magnetic 1000 Base-T Cross LP5008NL Lan Isolation Transformer DIP supplier

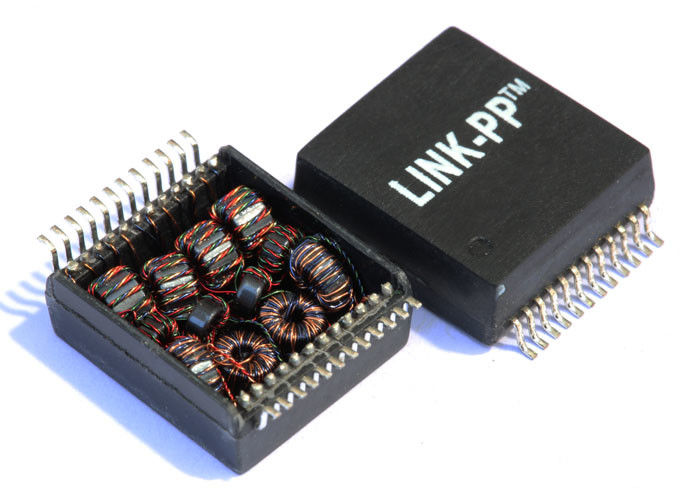

Large Image :  S558-5999-T2 Magnetic 1000 Base-T Cross LP5008NL Lan Isolation Transformer DIP

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: S558-5999-T2

Payment & Shipping Terms:

Minimum Order Quantity: 400/1800
Price: supportive
Packaging Details: tape & reel / tube
Delivery Time: stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5.1kk pcs/month
Contact Now
Detailed Product Description
P/N: S558-5999-T2 Series: GigE Transformer
Mounting: DIP Document: PDF / Datasheet / 3D / IGS / Step /Stp
Alternate: S558-5999-T2 =>LP5008NL Samples: Available 5 Pcs

S558-5999-T2 Magnetic 1000 Base-T Cross LP5008NL Lan Isolation Transformer DIP



NOTES:

1 Lan Transformer S558-5999-T2
2 Gigabit Magnetics Modules Ethernet application
3 Pin to pin compatible by LINK-PP LP5008NL

Designed to support gigabit ethernet

5 operating Temperature : 0 To 70 ℃

6 dimension , Size : 5.72X13.64X 15.24



Insertion loss : 1-100MHz -1.0 dB Max
Return loss (dM MIN) 1~30MHz -18
40MHz -18
50MHz -16
60-80MHz -12
100MHz -12
Cross Talk (dM MIN) 30MHz -45
60MHz -40
100MHz -33
DCMR(dM MIN) 30MHz -43
60MHz -37
100MHz -33
Inductance @ 100KHz, 0.1V, 8mA DC BIAS 180uHMin
HiPot Test @ 1500 Vrms
Operating Temperature Range 0°C to +70°C



Features:

Cable interface for isolation and low common mode emissions. Compliant with IEEE 802.3ab standard for 1000 BASE-T. Compliance with ROHS requirements



Application:

xDSL/ Wireless products/ EPON/ GPON/ IP Camera/ NAS/ STB/ Medical
