RV1-1000G72A Vertical Entry RJ45 Jack LPJD0101DNL For POE Application

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RV1-1000G72A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

modular jacks rj45

Part Number:
RV1-1000G72A
Mass Production:
LPJD0101DNL
Application:
10/100 Base-T
Termination:
Solder
LEDs:
Optional
Type:
DIP / Top Entry
Part Number:
RV1-1000G72A
Mass Production:
LPJD0101DNL
Application:
10/100 Base-T
Termination:
Solder
LEDs:
Optional
Type:
DIP / Top Entry

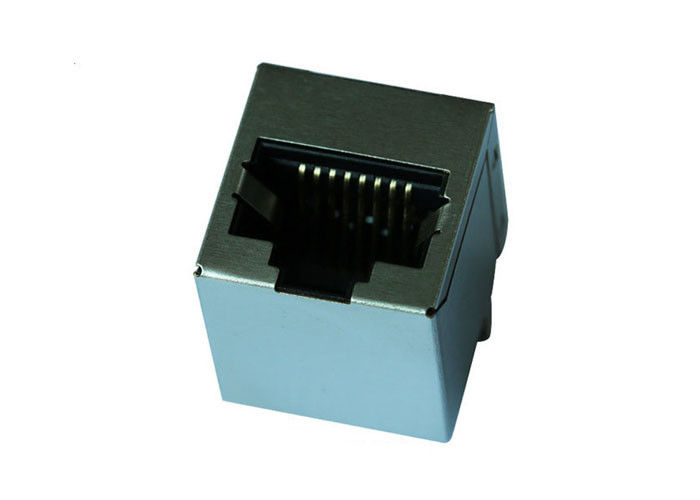

RV1-1000G72A Vertical Entry RJ45 Jack LPJD0101DNL For POE Application
RV1-1000G72A Vertical Entry RJ45 Jack LPJD0101DNL For POE Application

Quick Details

1. RJ45 1X1 Vertical
2. Through Hole
3. 10/100 Base-T
4. Vertical RJ45 Jack For POE Application

5. Designing Model : RV1-1000G72A

6. Mass Production Model : LPJD0101DNL



MAG , REVERSE LATCH , LED optional , EMI-finger Optional .


Description


1X1-Rj45 Vertical With Magnetics without leds, meeting IEEE 802.3 af/at



LINK-PP Part Number LPJD0101DNL RV1-1000G72A Vertical Entry RJ45 Jack LPJD0101DNL For POE Application 0
Designing Model RV1-1000G72A
Cores per Port 4
LED Option Without
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 16.70
Package Length (mm) 16.90
Package Width (mm) 16.15
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

RV1-1000G72A Vertical Entry RJ45 Jack LPJD0101DNL For POE Application 1

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
