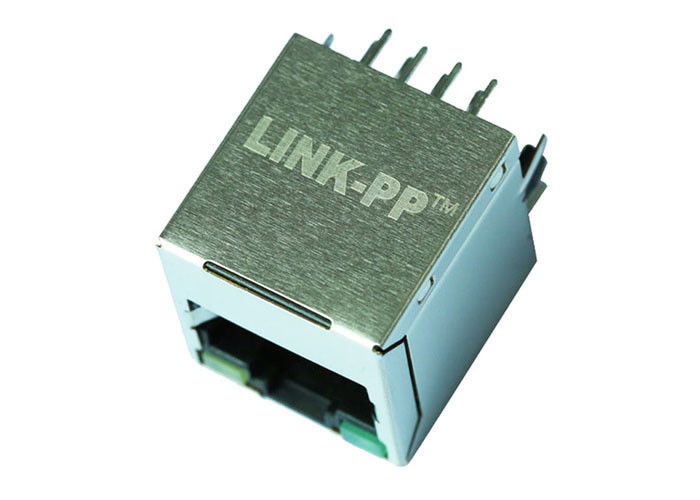

ARJ11G-MASA-A-B-FLT2 Vertical RJ45 Jack 8P8C Shield Top Entry Without Magnetic

Name: ARJ11G-MASA-A-B-FLT2 Vertical RJ45 Jack 8P8C Shield Top Entry Without Magnetic
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: ARJ11G-MASA-A-B-FLT2
Price: 0.09 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: ARJ11G-MASA-A-B-FLT2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 100PCS/Tray,11Trays=37*30*30CM=1100PCS/Carton =9KG

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    stacked rj45 connectors, modular jacks rj45


Specification:	ARJ11G-MASA-A-B-FLT2	Part No:	LPJxxxxxNL
Ethernet:	Cat5/5e	Mounting:	Shield Vertical
Munafactuer:	LINK-PP	Samples:	Available Free

Specification:	ARJ11G-MASA-A-B-FLT2
Part No:	LPJxxxxxNL
Ethernet:	Cat5/5e
Mounting:	Shield Vertical
Munafactuer:	LINK-PP
Samples:	Available Free

ARJ11G-MASA-A-B-FLT2 Vertical RJ45 Jack 8P8C Shield Top Entry Without Magnetic

ARJ11G-MASA-A-B-FLT2 Vertical RJ45 Jack 8P8C Shield Top Entry Without Magnetic

LINK-PP Rj45 Vertical Model Jack
8P8C Top Entry Rj45
pin to pin ARJ11G-MASA-A-B-FLT2
10/100 Base-T Vertical RJ45
Dimension : 16.1x16.7x17.0mm

ELECTRICAL SPECFICATIONS @25℃

1.Turn Ratio(± 5%):

TX=1CT:1 RX=1CT:1

2.EMI Fingers : No

3.LEDs(L/R) : G/Y

4.Insertion Loss(dB max):

-1.0dB MAX @ 0.3-100MHz

5.Return Loss(dB MIN @100Ω±15Ω):

-20dB MIN @ 1-30MHz

-15dB MIN @ 40MHz

-15dB MIN @ 50MHz

-10dB MIN @ 60-100MHz

6.Cross talk(dB TYP):

-30dB MIN @ 30MHz

-30dB MIN @ 60MHz

-30dB MIN @ 100MHz

7.Common Mode Rejection(dB MIN):

-30dB MIN @ 30MHz

-30dB MIN @ 60MHz

-30dB MIN @ 100MHz

8.Hipot Test: 1500Vrms MIN

9.DCR (MAX Ω) :PRI=1.0 SEC=1.2

ARJ11G-MASA-A-B-FLT2 Vertical RJ45 Jack 8P8C Shield Top Entry Without Magnetic 0

ARJ11G-MASA-A-B-FLT2 Vertical RJ45 Jack 8P8C Shield Top Entry Without Magnetic 1
