HR682480 Magnetic Lan Gigabit Ethernet Isolation Transformer With POE LP82440ANL

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: HR682480

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Vendor:
HR682480
Manufacturer:
LP82440ANL
Pin No:
24 Pins
Series:
Single Port GigE Transformer
Termination Style:
SMD/SMT
Samples:
Free Offer
Vendor:
HR682480
Manufacturer:
LP82440ANL
Pin No:
24 Pins
Series:
Single Port GigE Transformer
Termination Style:
SMD/SMT
Samples:
Free Offer

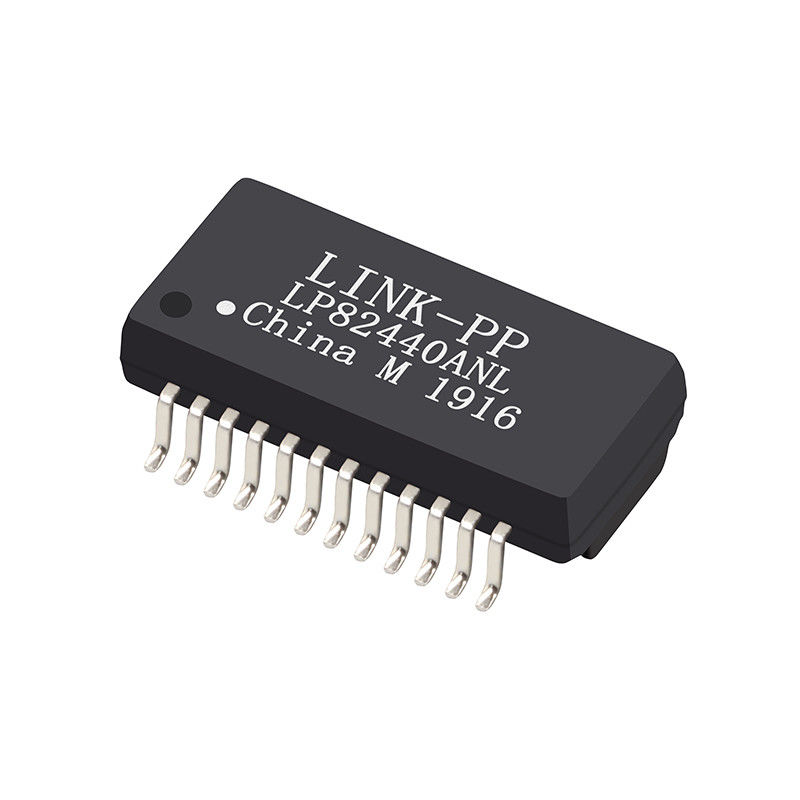

HR682480 Magnetic Lan Gigabit Ethernet Isolation Transformer With POE LP82440ANL

HR682480 Magnetic Lan Gigabit Ethernet Isolation Transformer With POE LP82440ANL



Notes:

1. Design For Gigabit Transceivers

2. IEEE 802.3af / ANSI X3.263 Compliant Performance

3. 350mA Current Capability

4. Maximun Reflow Temperature is 250℃ , 5Sec

5. For RoHS Part Add Suffix NL

6. UL Certification : File Number E484635



Manufacturer Series

HR682480

Mfr Package Description

ROHS COMPLIANT

REACH Compliant

Yes

EU RoHS Compliant

Yes

Status

Active More than 20 Years

Transformer Type

DATACOM TRANSFORMER

Application

LAN; 10/100/1000 BASE-T; ETHERNET

Isolation Voltage

1500.0 V

LINK-PP Cross

LP82440ANL Series  Equivalent Cross

File Available

Datasheet / PDF / 3D / Step / IGS

Mounting Feature

SURFACE MOUNT

Number of Functions

4

Operating Temperature

-40 To + 85 ℃

Packing Method

TAPE & REEL 350pcs/Reel

Primary Inductance

350.0 µH

Terminal Finish

TIN

Turns Ratio (Np:Ns)

1CT:1; 1CT:1

Height

6.0 mm

Length

17.62 mm

Width

12.2 mm





Q&A: Ordering and Support for HR682480



Q: How do I order the HR682480?
A: Simply click on the "Contact Us" button on our website and send an email to the LINK-PP Team. Our sales team will assist you with the ordering process.

Q: What payment methods are accepted for the HR682480?
A: We accept T/T (Bank Wire), PayPal, and Credit Card payments via PayPal.

Q: How long does it take to receive the HR682480?
A: We typically ship via FedEx, DHL, or UPS. Delivery usually takes 4 to 5 days. Registered airmail is also available as a shipping option.

Q: What warranty is provided for the HR682480?
A: We offer a 3-year warranty on the HR682480, ensuring peace of mind and reliability.

Q: Is technical support available for the HR682480?
A: Yes, our technical support team is ready to assist you with pinout information, application notes, datasheets in PDF format, manuals, schematics, replacements, and cross-referencing for the HR682480.
