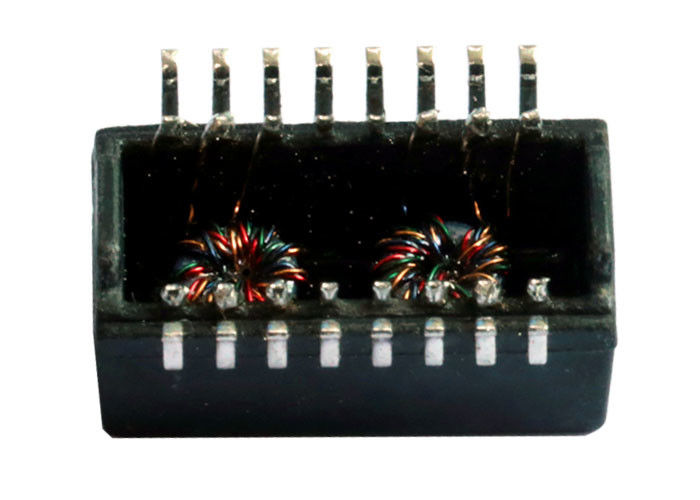

TS8121 LF 10/100 Ethernet LAN Magnetic Transformers For PC Card LP41668NL

China TS8121 LF 10/100 Ethernet LAN Magnetic Transformers For PC Card LP41668NL supplier

Large Image :  TS8121 LF 10/100 Ethernet LAN Magnetic Transformers For PC Card LP41668NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TS8121 LF

Payment & Shipping Terms:

Minimum Order Quantity: 1500/2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: TS8121 LF Part Number: LP41668NL
Hi-pot: 1500Vrms OCL: 350uh Min
Speed: 10/100 Base-TX Professional Certificate: SGS/ISO9001:2008/UL/ISO 14001:2004/REACH168

TS8121 LF 10/100 Ethernet LAN Magnetic Transformers For PC Card LP41668NL



1. 10/100 Base-T

2. Single Port Transformers

3. TS8121 LF Pin To Pin LP41668NL

4. 2 Cores And 16Pins



Specifications TS8121 LF
EU RoHS Compliant Yes
Status Updated by LP41668NL
Transformer Type DATACOM TRANSFORMER
Application LAN; 10/100 BASE-TX; ETHERNET
Isolation Voltage 1500.0 V
Manufacturer Series LP41668NL
Mounting Feature SURFACE MOUNT
Number of Functions 1
Operating Temperature 0 To 70
Packing Method TUBE or Reel
Turns Ratio (Np:Ns) 1:1; 1:1
Height 6.20 mm
Length 12.80 mm
Width 9.30 mm
Additional Feature HEIGHT DIMENSION INCLUDES TERMINAL ALSO

TS8121 LF 10/100 Ethernet LAN Magnetic Transformers For PC Card LP41668NL

TS8121 LF 10/100 Ethernet LAN Magnetic Transformers For PC Card LP41668NL
