7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

China 7499010126A 1X1 Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL supplier

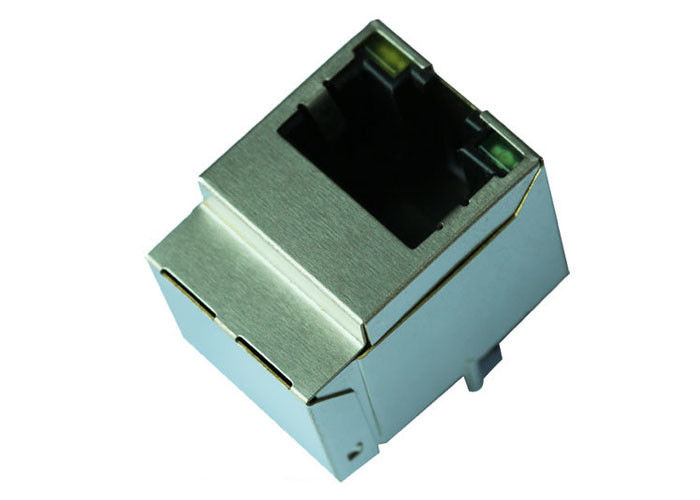

Large Image :  7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008,reach
Model Number: 7499010126A

Payment & Shipping Terms:

Minimum Order Quantity: 2000 / 10K, 50K
Price: Supportive
Packaging Details: Tray, Tape & Reel
Delivery Time: 4-5 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Spec: 7499010126A =MIC24611-5117T-LF3 LINK-PP Part Number: LPJE681XDNL
LEDs: Green / Yellow Shielded: Yes
Samples: Free Cross Rf: 7499010126A => LPJE681XDNL
Family: Vertical Rj45 Mod-Jack Speed: 10/100 Magnetic

7499010126A 1X1 Vertical Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

1. LPJD5011BENL Vertical Rj45 Jack
2. 1X1 Vertical Type 7499010126A
3. Through hole RJ45 modular jack
4. 7499010126A PIN TO PIN LPJD5011BENL
5. 7499010126A = MIC24611-5117T-LF3

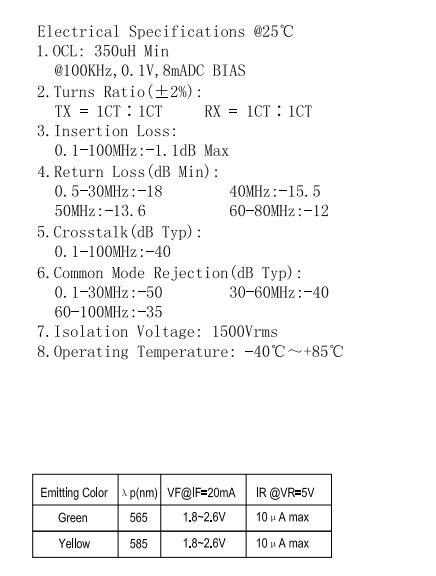

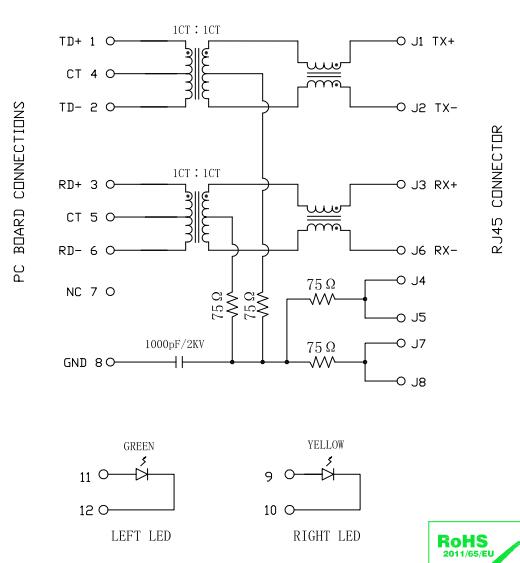

Description:



Application-LAN ETHERNET(NON POE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch UP/DOWN
Number of Ports SINGLE PORT With VERTICAL
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 With LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs With OR WithOUT
Speed 10/100 BASE-T
Temperature -40 TO 85°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1
7499010126A 1X1 Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL 7499010126A 1X1 Vertical  Entry RJ45 Modular Jack 8P8C Shielded LPJD5011BENL

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
