S558-5999-W2-F 100 BASE-T Magnetic Lan Transformer RoHS Compliant LP41626NL

China S558-5999-W2-F 100 BASE-T Magnetic Lan Transformer RoHS Compliant LP41626NL supplier

Large Image :  S558-5999-W2-F 100 BASE-T Magnetic Lan Transformer RoHS Compliant LP41626NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: S558-5999-W2-F

Payment & Shipping Terms:

Minimum Order Quantity: 500/2000pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 4600K/month
Contact Now
Detailed Product Description
P / N: S558-5999-W2-F Pin To Pin: LP41626NL
Pins: 16 Base: 100 BASE
Operating Temperature: 0 To 70 Port: Single Port Transformer

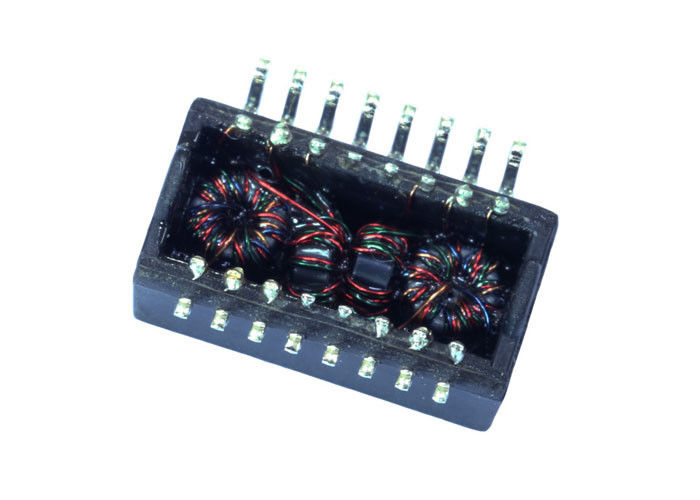

S558-5999-W2-F 100 BASE-T Magnetic Lan Transformer RoHS Compliant LP41626NL


Quick Details
1. Single Port Lan Transformer

2. ColiStructure : Toroidal

3. 10/100 base-t transformer

4. SMD , 16 pins

5. Operating Temperature (°C ) = 0 To 70

6. Files : PDF/3D/ISG/Stp/Step/Datasheet



Description:

Single Port 100 Base-t ETHERNET MAGNETIC TRANSFORMERS


ApplicationLAN ETHERNET(PoE&NON PoE)

Electrical Specifications(25):
1. Turns Ratio 50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss
1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk
30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min

AutomDXYES
CommentRoHS Compliant LP41626NL
Configuration RXT,C
Configuration TXT,C
ConstructionTRANSFER MOLD
Cores Per Port4
Number of PortsSingle
PCBNO PCB
PackageSMT
Package Height (mm)6.20
Package Length (mm)12.70
Package Width (mm)7.15
RoHS CompliantYES-RoHS-6
Speed100BASE-TX
Temperature0 TO 70
Turns Ratio RX1CT:1CT
Turns Ratio TX1CT:1CT


Applications:
1. GPIB Expanders and GPIB Isolators
2. Liquid Crystal Display (LCD) Modules
3. Data Acquisition Computer Boards
4. Point of Sale and Kiosk Computers


Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time


Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: summer

Tel: +8618026686530

Send your inquiry directly to us (0 / 3000)
