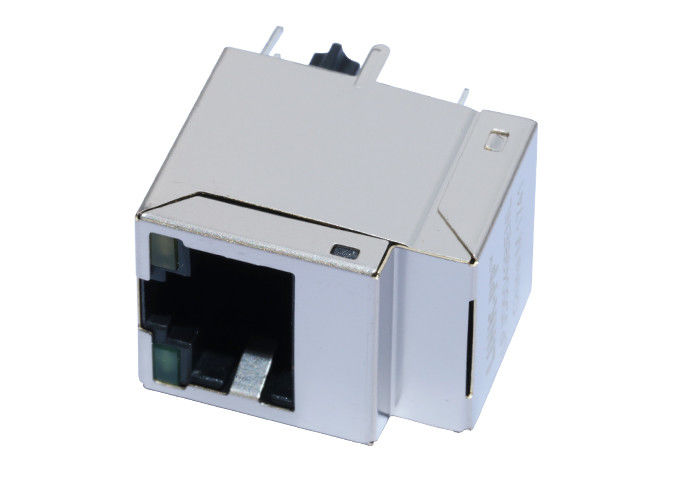

1840472-5 1000 Base-T Vertical RJ45 Jack With LED Compatible LPJD4711B52NL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 1840472-5

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 11KGS (1200 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

multi port connector

Spec:
1840472-5
Alternate Mfg:
LPJD4711B52NL
Family:
Vertical Jack
Application:
10/100/1000 Base-T
Files:
3D STEP IGS PDF
LEDs:
Green , Yellow / Green
Spec:
1840472-5
Alternate Mfg:
LPJD4711B52NL
Family:
Vertical Jack
Application:
10/100/1000 Base-T
Files:
3D STEP IGS PDF
LEDs:
Green , Yellow / Green
1840472-5 1000 Base-T Vertical RJ45 Jack With LED Compatible LPJD4711B52NL
1840472-5 1000 Base-T Vertical RJ45 Jack With LED Compatible LPJD4711B52NL

1840472-5 1000 Base-T Vertical RJ45 Jack With LED Compatible LPJD4711B52NL 0
LINK-PP Part Number LPJD4711B52NL
Designing Model 1840472-5
Cores per Port 8
LED Option GREEN,YELLOW/GREEN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 20.60
Package Length (mm) 21.59
Package Width (mm) 16.00
Shield EMI Tabs WITH
Speed 10/100/1000 BASE-T
Temperature -40 TO 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Description

1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN

Applications For Terminal User

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
