Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

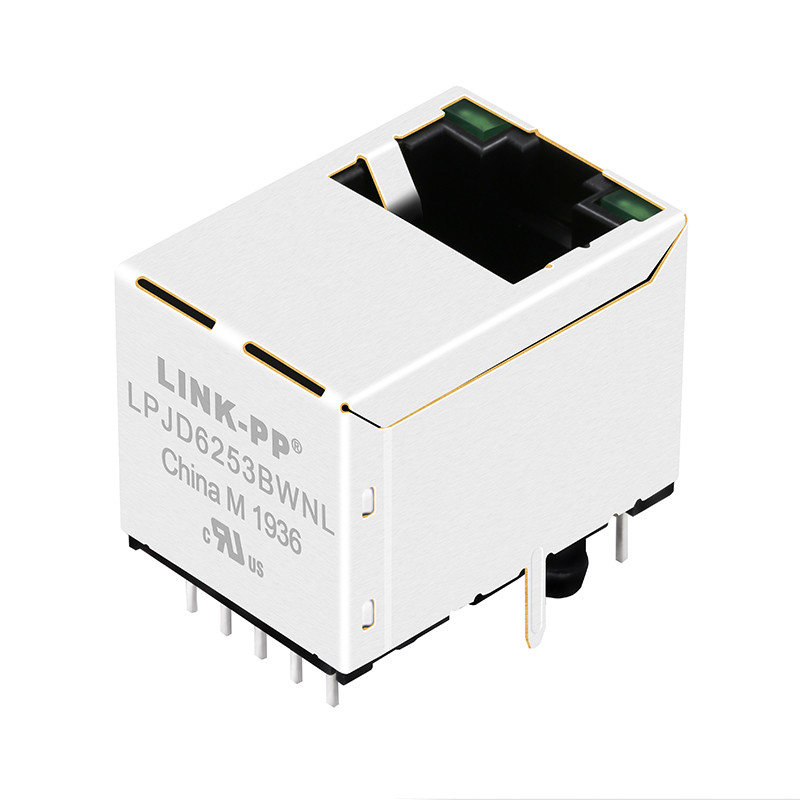

Model Number: 7499410221 (LPJD6253BWNL)
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/month
Product Family: |
RJ45 Transformer 10/100Mbs For PoE+ Application |
Gender: |
Jack (Female) |
Number Of Ports: |
1 Port |
Number Of Contacts: |
8 Contact |
Number Of Positions: |
8 Position |
Mounting Style: |
Through Hole |
Product Family: |
RJ45 Transformer 10/100Mbs For PoE+ Application |
Gender: |
Jack (Female) |
Number Of Ports: |
1 Port |
Number Of Contacts: |
8 Contact |
Number Of Positions: |
8 Position |
Mounting Style: |
Through Hole |
| Part Number | LPJG0933HENL |
| Overview | THT 10/100BASE-T Vertical RJ45 Connector |
| Ports | 1x1 |
| PoE | PoE+ |
| Tab | Vertical |
| Operating Temperature | -40 °C up to +85 °C |
| LED | green-green |
| PHY chip Mode | Current |
| Shield Tabs | Without |
| Electrical Properties | |
| Inductance OCL | 350uH MIN @100kHz / 100mV, 8mA DC-Bias |
| Turns ratio TR | 1:1 (±2%) |
| Insertion Loss IL | -1.0dB Max @1KHz~100MHz |
| Return Loss RL | -16dB MIN @1-30MHz,100Ω -14dB MIN @30-60MHz,100Ω -12dB MIN @60-80MHz,100Ω -10dB MIN @80-100MHz,100Ω |
| Common Mode Rejection CMRR |
-35dB MIN @1-30MHz -33dB MIN @30-60 MHz -30dB MIN @60-100 MHz |
| Crosstalk CT |
-33dB MIN @1-60MHz -30dB MIN @60-100MHz |
