Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11G-MBSB-MU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Tray, Tape & Reel
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4700K/month
Product Name: |
ARJ11G-MBSB-MU2 |
Base: |
10/100 M |
Application: |
HUB, PC Card, Switch, Router, PC Mainboard |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Gender: |
Female,Receptacle |
Cross Rf: |
ARJ11G-MBSB-MU2 => LPJxxxNL |
Product Name: |
ARJ11G-MBSB-MU2 |
Base: |
10/100 M |
Application: |
HUB, PC Card, Switch, Router, PC Mainboard |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Gender: |
Female,Receptacle |
Cross Rf: |
ARJ11G-MBSB-MU2 => LPJxxxNL |

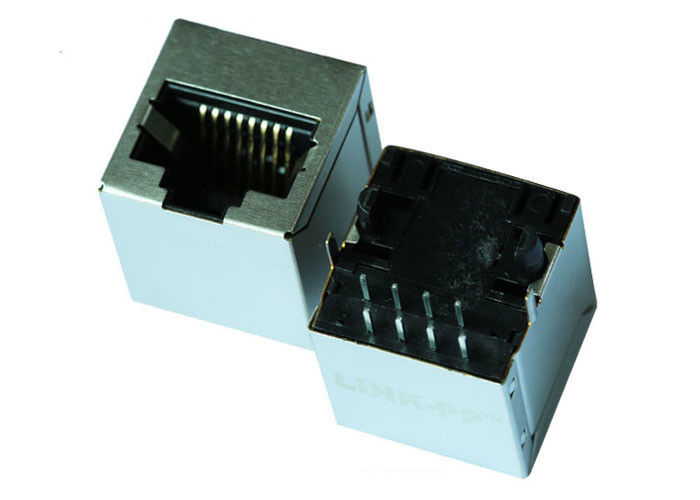

1. Vertical RJ45 Modular Jacks
2. 10/100M rj45 modular plugs Without LED
3. Suitable for RoHS compliant reflow
4. Gender: female
5. Comply IEEE 802.3ab
6. Suitable CAT 5 & 6 cable and UTP
| Part Number: | ARJ11G-MBSB-MU2 | Height(mm) | 16.7 |
| Cross Compatible; | LPJxxxNL | Length(mm) | 17.0 |
| Manufacturer | LINK-PP | Width(mm) | 16.1 |
| Speed: | 1000 Base-T | Number of Port: | 1 |
| LED | Without | Turns Ratio (Np:Ns) | 1:1; 1:1 |
Description:
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 4
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole
6. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
1100 staff,
100% test
Flexible delivery time
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
