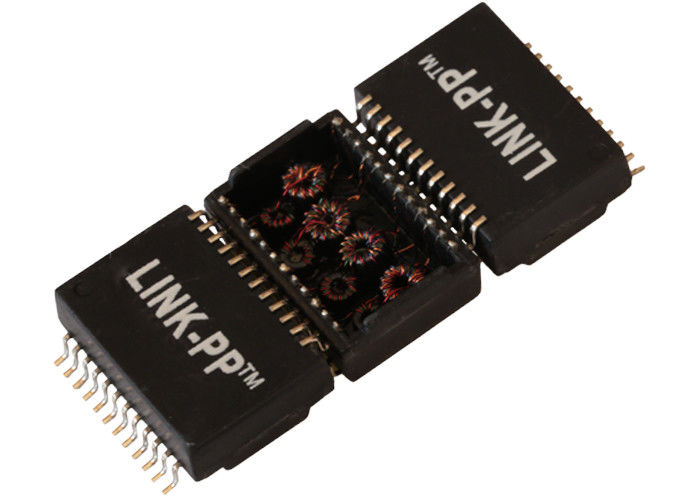

LP5004NLE Gigabit Magnetics Transformer 1 Port Surface Mounting

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5004NLE

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Specifications:
LP5004NLE
Ethernet:
1000 BASE-T
Mounting:
SMD
Measure:
17.70x15.80x6.60mm
Samples:
Free
Temperature:
0℃ TO +70℃
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP5004NLE
Ethernet:
1000 BASE-T
Mounting:
SMD
Measure:
17.70x15.80x6.60mm
Samples:
Free
Temperature:
0℃ TO +70℃
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LP5004NLE Gigabit Magnetics Transformer 1 Port Surface Mounting
LP5004NLE Gigabit Magnetics Transformer 1 Port Surface Mounting

Detailed Information:

LP5004NLE Gigabit Magnetics Transformer 1 Port Surface Mounting
LINK-PP Part Number LP5004NLE
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.260
Package Height (mm) 6.60
Package Length (Inches) 0.697
Package Length (mm) 17.7
Package Width (Inches) 0.496
Package Width (mm) 12.6
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy



100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years



Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT



LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

LP5004NLE Gigabit Magnetics Transformer 1 Port Surface MountingLP5004NLE Gigabit Magnetics Transformer 1 Port Surface MountingLP5004NLE Gigabit Magnetics Transformer 1 Port Surface MountingLP5004NLE Gigabit Magnetics Transformer 1 Port Surface MountingLP5004NLE Gigabit Magnetics Transformer 1 Port Surface Mounting

Test Description SPEC 1 2 3 TEST FREQ.
T1 T2 T3 T4 T1 T2 T3 T4 T1 T2 T3 T4
OCL (Test by TH2818) 350uH MIN 620 609 580 594 602 597 605 600 576 563 578 580 100KHz 0.1V 8mA
Turn Ratio (Test by TH2818) 1CT∶1CT OK OK OK OK OK OK OK OK OK OK OK OK ---
Insertion Loss (Test by HP8712ET) -1.0dB MAX -0.30 -0.29 -0.27 -0.25 -0.38 -0.35 -0.33 -0.35 -0.30 -0.28 -0.31 -0.29 1-100MHz
Return Loss (Test by HP8712ET) -18dB MIN -22.7 -23.4 -22.2 -21.8 -23.0 -22.9 -23.4 -21.8 -20.6 -21.2 -21.4 -20.2 1-40MHz
-16dB MIN -19.4 -17.9 -18.6 -19.3 -17.9 -17.8 -18.3 -18.5 -18.7 -18.0 -18.4 -18.0 50MHz
-12dB MIN -16.1 -15.6 -15.5 -15.8 -15.8 -15.1 -15.8 -15.5 -15.3 -15.2 -15.6 -15.4 60-80MHz
-10dB MIN -15.0 -15.1 -15.0 -15.0 -14.9 -14.3 -14.1 -14.3 -15.2 -15.0 -15.0 -15.1 100MHz
Crosstalk (Test by HP8712ET) -45dB MIN -52.1 -50.3 -49.8 -48.9 -49.3 -50.3 30MHz
-40dB MIN -44.7 -43.9 -44.0 -42.9 -43.4 -44.2 60MHz
-35dB MIN -39.8 -38.6 -38.1 -38.7 -39.5 -38.9 100MHz
DCMR (Test by HP8712ET) -43dB MIN -58.3 -57.6 -56.4 -56.0 -58.7 -56.9 -57.2 -56.7 -50.2 -51.6 -50.9 -51.3 30MHz
-37dB MIN -44.6 -44.2 -40.9 -39.8 -43.1 -42.7 -45.0 -43.9 -42.5 -41.8 -42.5 -41.8 60MHz
-33dB MIN -38.2 -37.5 -35.9 -35.6 -37.3 -36.0 -38.7 -38.3 -37.9 -37.6 -38.2 -37.9 100MHz
Hipot (Test by WB2670A) 1500Vrms OK OK OK OK OK OK OK OK OK OK OK OK PRI TO SEC
