Specifications: LP5019NL P/N: LP5019NL
Dimension: 19.81x19.56x2.54mm Mounting: SMT
Position: 24 Pins Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

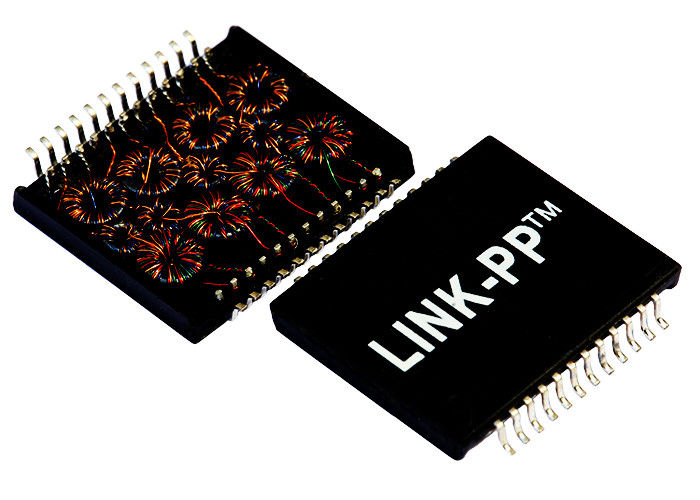

LP5019NL 1000Base-T Low Profile Ethernet Magnetic Transformers Gigabit Network



  1. Low Profile Ethernet Magnetic Transformers
  2. Isolation Voltage:1500Vrms
  3. Type:Surface Mounting Transformer
  4. Coil Structure: Toroidal
  5. 1000Base-T Low Profile Magnetics
Dual Port, 1000 BASE-T Low Profile Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP5019NL
Pulse Part Number H5019NL
Speed 1000BASE-T
Number of Ports DUAL
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 12
Package Height (Inches) 0.100
Package Height (mm) 2.54
Package Length (Inches) 0.780
Package Length (mm) 19.81
Package Width (Inches) 0.770
Package Width (mm) 19.56
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

LP5019NL 1000Base-T Low Profile Ethernet Magnetic Transformers Gigabit Network




Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side

Applications


Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
