Home > products > Discrete Magnetic Transformers > LP5015ANLE 1000Base-tx Ethernet Magnetic Transformers 24pins SMD

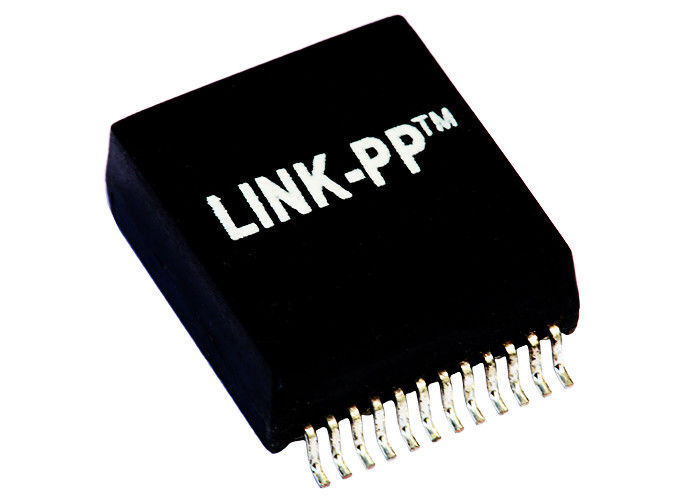

LP5015ANLE 1000Base-tx Ethernet Magnetic Transformers 24pins SMD

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5015ANLE

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

100/1000base-t filter

,

1000base-t magnetic module

Specifications:
LP5015ANLE
P/N:
LP5015ANLE
Ethernet:
1x 1000Base-T
Mounting:
Surface
Dimension:
13.64x18.80x5.72 Mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP5015ANLE
P/N:
LP5015ANLE
Ethernet:
1x 1000Base-T
Mounting:
Surface
Dimension:
13.64x18.80x5.72 Mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
LP5015ANLE 1000Base-tx Ethernet Magnetic Transformers 24pins SMD
LP5015ANLE 1000Base-tx Ethernet Magnetic Transformers 24pins SMD



  1. Gigabit Magnetics Transformer Single Module
  2. Isolation Voltage:1500Vrms
  3. Coil Structure: Toroidal 12 Coils
  4. LP5015ANLE 1000Base-tx Ethernet Magnetic Transformers 24pins SMD



Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side


Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
