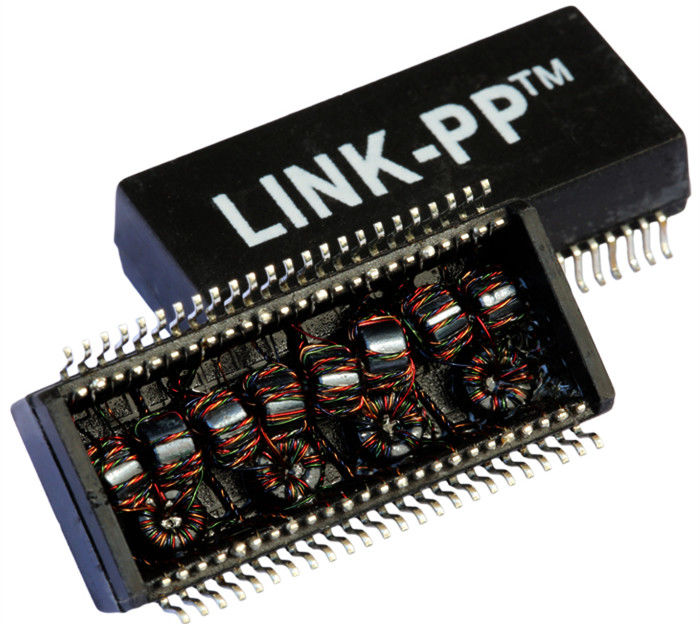

16 Coils Dual Port Gigabit Module , LP5014NLE Ethernet Magnetic Transformers

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5014NLE

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

gigabit magnetics transformer

,

ethernet transformer

Specifications:
LP5014NLE
LINK-PP P/N:
LP5014NLE
Ethernet:
2x 10/100/1000Mbps
Mounting:
SMD
Measure:
28.00x15.40x7.00mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
Specifications:
LP5014NLE
LINK-PP P/N:
LP5014NLE
Ethernet:
2x 10/100/1000Mbps
Mounting:
SMD
Measure:
28.00x15.40x7.00mm
Samples:
Free
Archivi Disponibili:
PDF/3D/ISG/Stp/Step/Datasheet
16 Coils Dual Port Gigabit Module , LP5014NLE Ethernet Magnetic Transformers

16 Coils Dual Port Gigabit Module , LP5014NLE Ethernet Magnetic Transformers

Detailed Information:

Dual Port,1000 BASE-T Ethernet Transformer Modules,SMD,Rohs
LINK-PP Part Number LP5014NLE
Speed 1000BASE-T
Number of Ports DUAL
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature -40℃ TO +85℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 16
Package Height (Inches) 0.276
Package Height (mm) 7.00
Package Length (Inches) 1.102
Package Length (mm) 28.00
Package Width (Inches) 0.638
Package Width (mm) 16.20
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
