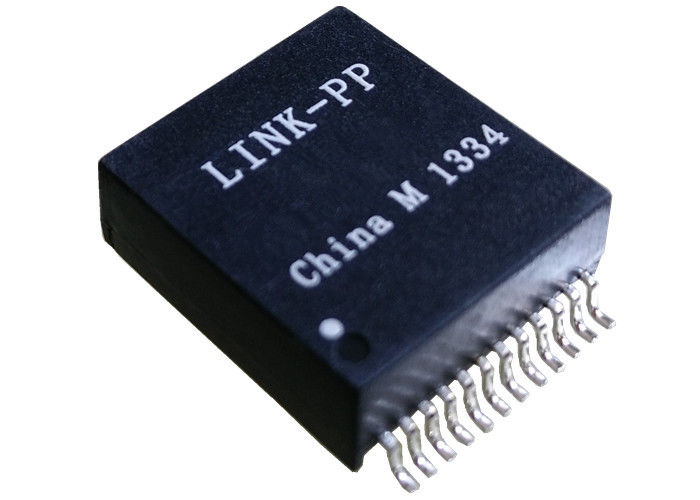

1000base-t Ethernet Magnetic Transformers LP5011ANL

Name: 1000base-t Ethernet Magnetic Transformers LP5011ANL
Brand: LINK-PP
SKU: LP5011ANL
Price: 0.06 USD
Availability: InStock
Rating: 4.7 (108 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5011ANL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                10/100base-t magnetics, gigabit magnetics transformer


Specifications:	LP5011ANL	Ethernet:	1 X10/100/1000Base-T
Measure:	13.64x18.80x5.72 Mm	Mounting:	SMD
Position:	24 Pins	Samples:	Free

Specifications:	LP5011ANL
Ethernet:	1 X10/100/1000Base-T
Measure:	13.64x18.80x5.72 Mm
Mounting:	SMD
Position:	24 Pins
Samples:	Free

1000base-t Ethernet Magnetic Transformers LP5011ANL

1000base-t Ethernet Magnetic Transformers LP5011ANL

Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

40MHz: -14.4dB Min

50MHz: -13.1dB Min

60-80MHz: -12dB Min

100MHz: -10dB Min

5. Differential to Common Mode Rejection:

30MHz: -45dB Min

60MHz: -40dB Min

100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

60MHz: -35dB Min

100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

Chip side to Line side

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

LP5012NLE
LP5014ANL
LP5014NLE
LP5014NL
LP5015ANL
