Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP1294NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
HX1294NL |
LINK-PP P/N: |
LP1294NL |
Ethernet: |
10/100Mbps X2 |
Mounting: |
SMD |
Measure: |
13.64x18.80x5.72mm |
Number Of Ports: |
Dual |
PIN Number: |
24 |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specification: |
HX1294NL |
LINK-PP P/N: |
LP1294NL |
Ethernet: |
10/100Mbps X2 |
Mounting: |
SMD |
Measure: |
13.64x18.80x5.72mm |
Number Of Ports: |
Dual |
PIN Number: |
24 |
Temperature: |
- 40℃ TO + 85℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Detailed Information:

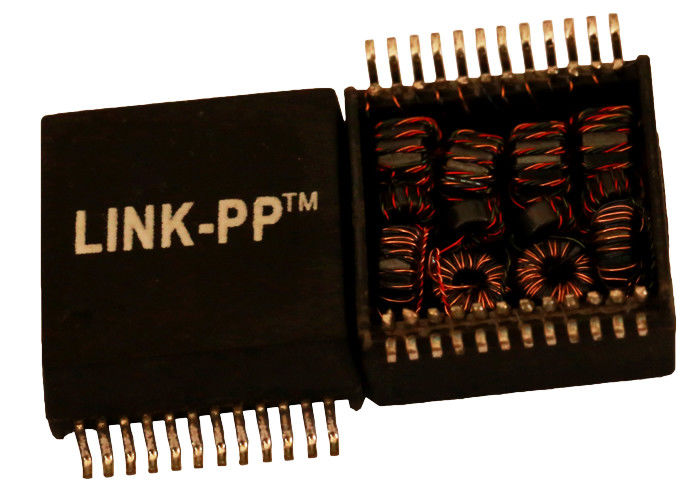

| LINK-PP LP1294NL 100% CROSS PULSE HX1294NL | |
| LINK-PP Part Number | LP1294NL |
| Specification | HX1294NL |
| Speed | 10/100BASE-T |
| Number of Ports | DUAK |
| Application - LAN | ETHERNET (NoN PoE) |
| Package | SMD |
| Temperature | -40℃ TO +85℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.225 |
| Package Height (mm) | 5.720 |
| Package Length (Inches) | 0.740 |
| Package Length (mm) | 18.80 |
| Package Width (Inches) | 0.537 |
| Package Width (mm) | 13.64 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
