10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT

China 10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT supplier
10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT supplier 10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT supplier

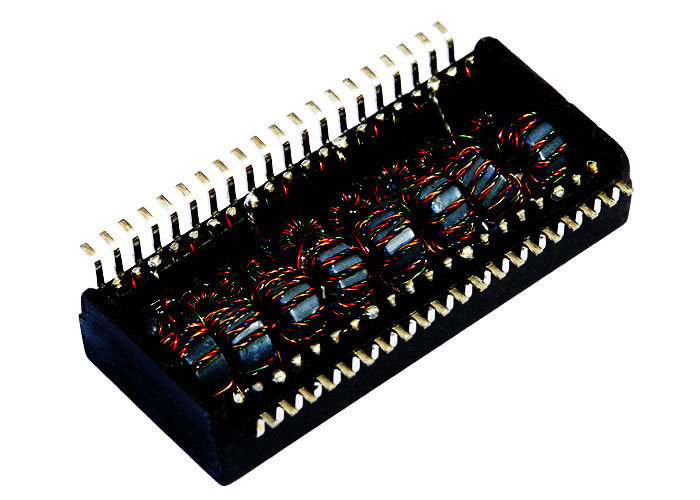

Large Image :  10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1236NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1236NL P/N: LP1236NL
Ethernet: 10/100Base-T X4 Ratio: 1CT:1CT
Mounting: Surface Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT
  1. XFMR 10/100BASE-T Four PORT 1:1 SMT Module
  2. LINK-PP LP1236NL Quad Port Lan Discrete Transformer Modules



Electrical Specification @25℃
1.OCL: 350uH Min
@100KHz,0.1Vrms,8mA
2.Insertion Loss:
0.1-100MHz: -0.5dB Max
3.Return Loss:
2-30MHz: -18dB Min
40MHz: -16dB Min
50MHz: -14.5dB Min
60-80MHz: -12dB Min
4.Crosstalk:
1MHz: -50dB Min
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
5.CMR:
0.1-60MHz: -30dB Min
6.DCMR:
1-60MHz: -40dB Min
60-80MHz: -35dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃~70℃

10/100Base-T Quad Ports Magnetic Transformers LP1236NL 1CT:1CT
