LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T

China LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T supplier
LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T supplier LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T supplier

Large Image :  LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1260NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1260NL P/N: LP1260NL
Mounting: SMD Ethernet: 1x10/100Mbps
Measure: 12.70x9.40x5.97mm Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

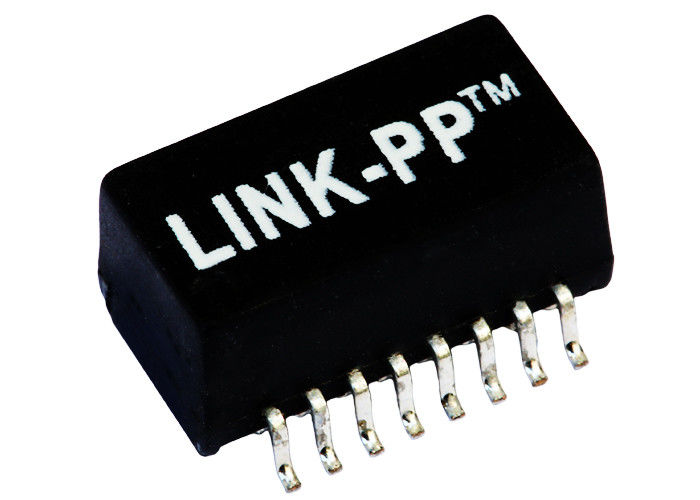

LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T​



1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms
3.Type:SMT
4. Coil Structure: Toroidal


  • LP1260NL LINK-PP
  • LP1260ANLE LINK-PP
  • LP1260NLE LINK-PP
Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1260NL
Pulse Part Number H1260 /H1260NL /HX1260NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.235
Package Height (mm) 5.97
Package Length (Inches) 0.500
Package Length (mm) 12.70
Package Width (Inches) 0.37
Package Width (mm) 9.40
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side



Applications:


Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


Competitive Advantage:


1100 staff,
100% test
Flexible delivery time

LP1260NL Single Port Ethernet Pulse Transformer With 10/100Base-T​

Contact Details
LINK-PP INT'L TECHNOLOGY CO., LIMITED

Contact Person: Amanda.y@link-pp.com

Tel: +8618665915096

Send your inquiry directly to us (0 / 3000)
