Detailed Product Description
Specifications: LP2023NL P/N: LP2023NL
Ethernet: 10Base-T Ratio: 1CT:1CT,1CT:2.5CT
Mounting: SMD Samples: Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

1CT:1CT,1CT:2.5CT , LP2023NL Ethernet Magnetic Transformers
  1. Turn Ratio: 1CT:1CT,1CT:2.5CT
  2.  Isolation Voltage:1500Vrms
  3. Type:SMTTransformer

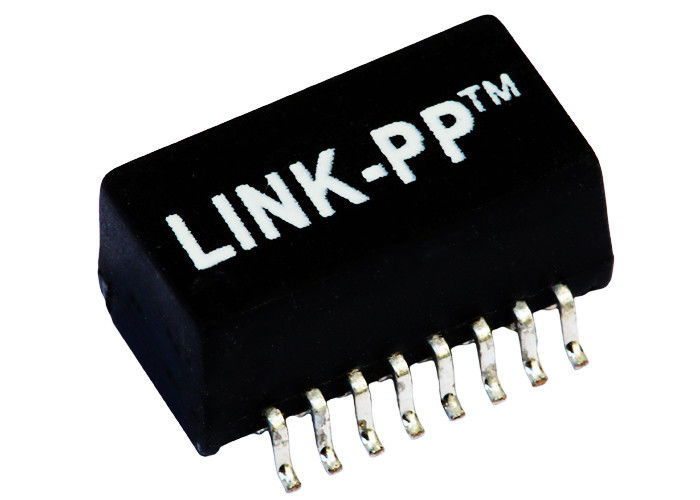

  4. LP2023NL Ethernet Magnetic Transformers
Single Port, 10 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP2023NL
Pulse Part Number H2023NL / E2023NL
Speed 10 BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.244
Package Height (mm) 6.20
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.366
Package Width (mm) 9.30
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:2.5CT
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
             60MHz: -35dB Min
             100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side



Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
