LP1302NL Ethernet Magnetic Transformers 10/100Base-T

China LP1302NL Ethernet Magnetic Transformers 10/100Base-T supplier
LP1302NL Ethernet Magnetic Transformers 10/100Base-T supplier LP1302NL Ethernet Magnetic Transformers 10/100Base-T supplier LP1302NL Ethernet Magnetic Transformers 10/100Base-T supplier

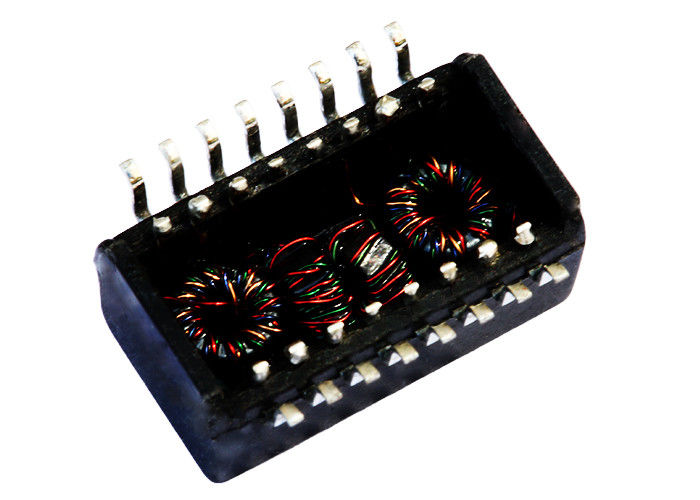

Large Image :  LP1302NL Ethernet Magnetic Transformers 10/100Base-T

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1302NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1302NL Ratio: 1CT:1CT
Size: 12.70x9.40x5.97mm Ethernet: 10/100Mbps
Samples: Available Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet

LP1302NL Ethernet Magnetic Transformers 10/100Base-T



  1. Single Port Magnetics Module
  2. LINK-PP LP1302NL 1x10/100Base-T Magnetics Transformer
  3. Isolation Voltage:1500Vrms
  4. Type:SMT LP1302NL
  5. Coil Structure: Toroidal
Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1302NL
Pulse Part Number H1302NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 5
Package Height (Inches) 0.235
Package Height (mm) 5.97
Package Length (Inches) 0.50
Package Length (mm) 12.70
Package Width (Inches) 0.37
Package Width (mm) 9.4
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications (25):

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side

Applications:

Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


Competitive Advantage:


1100 staff,

100% test

Flexible delivery time
