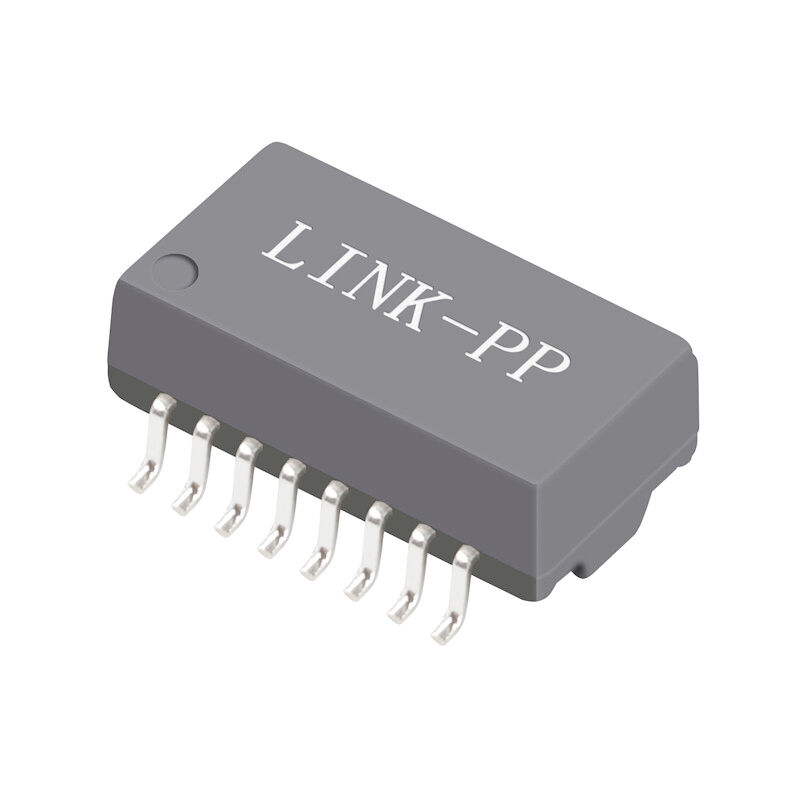

LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module

China LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module supplier
LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module supplier LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module supplier LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module supplier LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module supplier LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module supplier

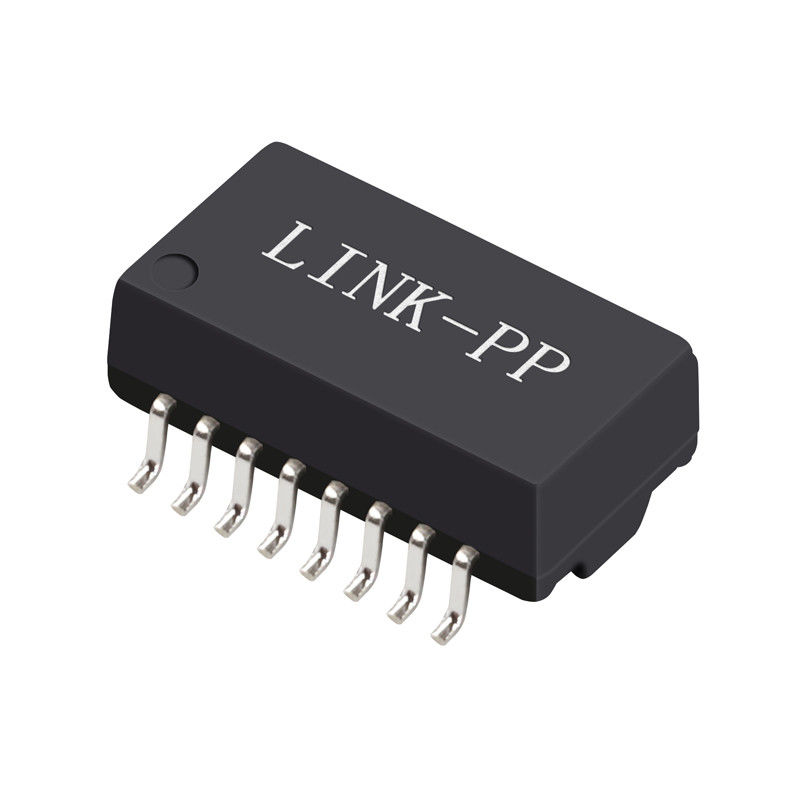

Large Image :  LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1011NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1011NL Ethernet: 1x10/100M
Mounting: SMD Measure: 12.7x9.30x6.20mm
Application: ETHERNET (NON PoE) PIN Number: 16
Temperature: 0 TO + 70℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP1011NL Single Port Magnetic Transformers 10/100Base-T Isolation Module

1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms
3.Type:SMT
LP1011NL
4. Coil Structure: Toroidal



10/100 Base -T Single Port Transformer Modules, SMD,Rohs
LINK-PP Part Number LP1011NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Number of Ports SINGLE
Package Height (Inches) 0.234
Package Height (mm) 5.95
Package Length (Inches) 0.451
Package Length (mm) 11.45
Package Width (Inches) 0.366
Package Width (mm) 9.30
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
             60MHz: -35dB Min
             100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
