LP0023NL Low Profile Magnetic Transformers Module 10/100Base-Tx

China LP0023NL Low Profile Magnetic Transformers Module 10/100Base-Tx supplier
LP0023NL Low Profile Magnetic Transformers Module 10/100Base-Tx supplier LP0023NL Low Profile Magnetic Transformers Module 10/100Base-Tx supplier

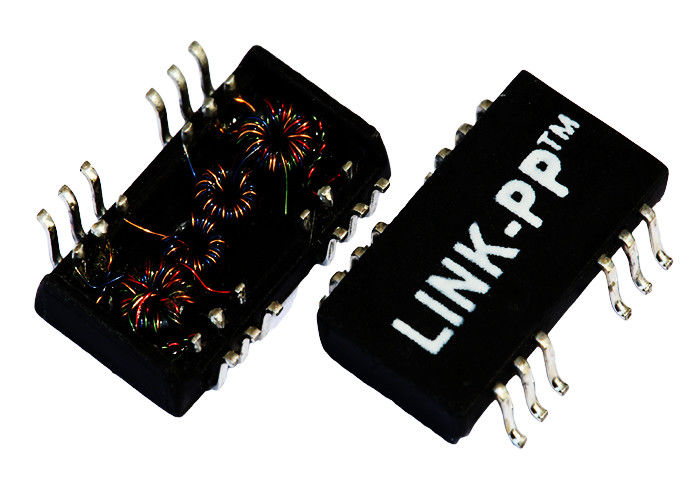

Large Image :  LP0023NL Low Profile Magnetic Transformers Module 10/100Base-Tx

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP0023NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP0023NL P/N: LP0023NL
Measure: 12.06x11.65x2.5mm Mounting: SMY
Ethernet: 1x10/100M Samples: Free
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP0023NL Low Profile Magnetic Transformers Module 10/100Base-Tx

  1. Low Profile Transformer Model to 10/100Base-tx Ethernet
  2. LP0023NL single Port Magnetics Isolation Transformer
  3. Isolation Voltage:1500Vrms
  4. Type:SMT
  5. Coil Structure: Toroidal
Single Port, 10/100 BASE-T Ethernet Transformer Modules, SMD,Rohs
LINK-PP Part Number LP0023NL
Speed 10/100BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NON PoE)
Package SMD
Temperature 0 TO 70
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 4
Package Height (Inches) 0.098
Package Height (mm) 2.50
Package Length (Inches) 0.475
Package Length (mm) 12.06
Package Width (Inches) 0.459
Package Width (mm) 11.65
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
    Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
    Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
            40MHz: -14.4dB Min
            50MHz: -13.1dB Min
            60-80MHz: -12dB Min
            100MHz: -10dB Min
5. Differential to Common Mode Rejection:
            30MHz: -45dB Min
            60MHz: -40dB Min
            100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
             60MHz: -35dB Min
             100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
    Chip side to Line side

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem


Competitive Advantage:



1100 staff,



100% test
Flexible delivery time
