Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

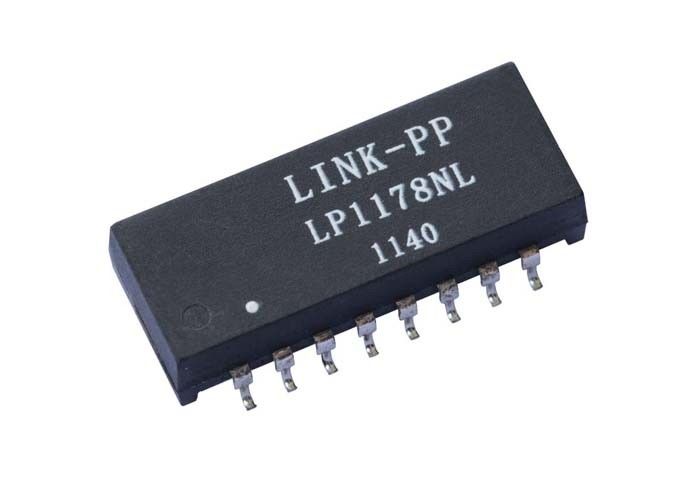

Model Number: LP1178NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
LP1178NL |
P/N: |
LP1178NL |
Measure: |
25.58x12.70x7.12mm |
Mounting: |
SMD |
Ethernet: |
1x10/100Base-T |
Samples: |
Free |
Specifications: |
LP1178NL |
P/N: |
LP1178NL |
Measure: |
25.58x12.70x7.12mm |
Mounting: |
SMD |
Ethernet: |
1x10/100Base-T |
Samples: |
Free |
|
|
|
Electrical Specifications @25℃
1.Insertion Loss:
0.1-100MHz:-1.5dB MAX
2.Return Loss(dB MIN @100Ω):
1-30MHz:-18 40MHz:-13.5
50MHz:-11.5 60-80MHz:-10
3.Crosstalk(dB TYP):
30MHz:-50 60MHz:-40
100MHz:-40
4.DCMR(dB MIN):
30MHz:-42 60MHz:-37
100MHz:-33
5.Hipot: 1500Vrms MIN
6.Operating Temperature: -40℃～+85℃.
Other parts Available:
| LP1086NLE | LP1126NL | LP1148NLE | LP1108NLE |
