ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface

China ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface supplier
ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface supplier ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface supplier

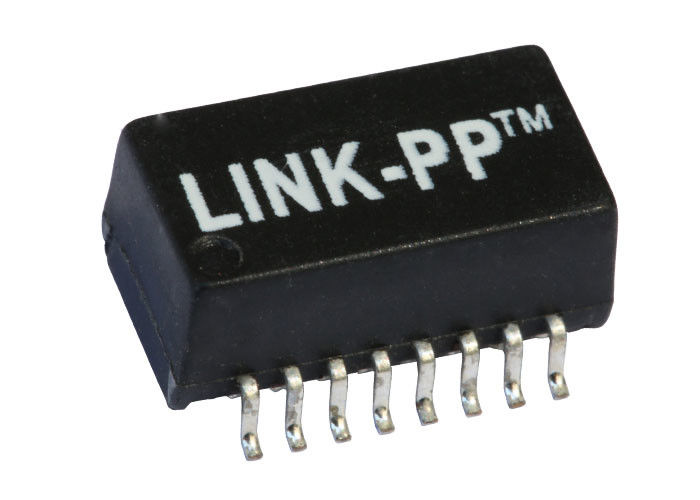

Large Image :  ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: ALAN-134

Payment & Shipping Terms:

Minimum Order Quantity: 500/2000pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypal,West Union, MoneyGram
Supply Ability: 4000K/month
Contact Now
Detailed Product Description
Specifications: ALAN-134 Speed: 10/100 BASE-T
Application: Lan Ethernet (NoN PoE/PoE/PoE+) Package: SMT
Temperature: 0 TO + 70℃/- 40 TO + 85℃ Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface


1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms
3. Type:SMT

4. Coil Structure : Toroidal

5. Free Samples Are Available

6. Package type : Transfer Molding



Description:

Application

ALAN-134

AutomDX

YES

Comment

RoHS Compliant LPXXXXNL

Configuration RX

T,C

Configuration TX

T,C

Construction

TRANSFER MOLD

Cores Per Port

4

Number of Ports

QUAD

PCB

NO PCB

Package

SMT

Profile Feature

Pb-Free Assembly

Temperature Min (Ts min)

150°C

Temperature Max (Ts max)

200°C

Time (ts min to ts max)

60-180 seconds

Package Width (Inches)

0.63 or other

Package Width (mm)

16.002 or other

Package Length (mm)

28.448 or other

RoHS Compliant

YES-RoHS-6

Temperature

0 TO 70/-40 To +85

Turns Ratio RX

1CT:1CT

Turns Ratio TX

1CT:1CT

Speed

10/100M



Applications:
Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem



Competitive Advantage:
16 years production experience,

1100 staff,

100% test

Flexible delivery time

ALAN-134 Single Port 10/100 Base-TX Transformer For Ethernet Isolation LAN Interface

ATTENTION:

Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications.
Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component
failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from
Abracon Corporation is required. Please contact Abracon Corporation for more information.
