LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD

China LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD supplier
LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD supplier LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD supplier

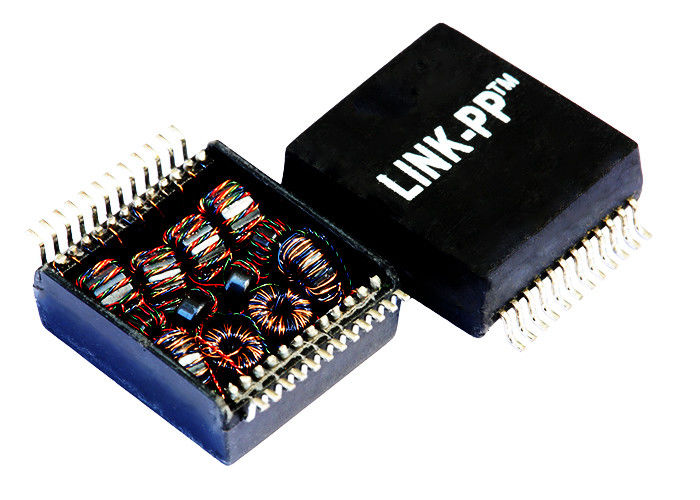

Large Image :  LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: LP1174NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: LP1174NL P/N: LP1174NL
Ethernet: 10/100Base-T SMD Measure: 13.08x14.99x3.68mm
Mounting: SMD Samples: Available
Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD
  1. 10/100Base-T Dual Port Transformer
  2. Two Port Lan Discrete Transformer Modules



Electrical Specifications @25℃
1.Insertion Loss:
0.1-100MHz:-1.2dB MAX
2.Return Loss:
2-30MHz:-18dB MIN 40MHz:-16dB MIN
50MHz:-14dB MIN 60-80MHz:-12dB MIN
3.Crosstalk:
1MHz:-60dB TYP 30MHz:-45dB TYP
60MHz:-40dB TYP 100MHz:-35dB TYP
4.Differential to Common Mode Rejection:
1-60MHz:-45dB MIN
60-200MHz:-35dB MIN
5.Isolation Voltage: 1500Vrms
6.Operating Temperature: 0℃~70℃.



LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD

LP1174NL Dual Port Ethernet Magnetic Transformers 10/100Base-T SMD
