Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP5007NLE
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
LP5007NLE |
Samples: |
Free |
Ethernet: |
1x 10/100/1000Mbps |
Position: |
24 Pins |
Measure: |
17.70x15.80x6.60mm |
Specification: |
LP5007NLE |
Samples: |
Free |
Ethernet: |
1x 10/100/1000Mbps |
Position: |
24 Pins |
Measure: |
17.70x15.80x6.60mm |
1. Coil Number: Autotransformer
2. Isolation Voltage:1500Vrms
3. Single Port Ethernet Magnetic Transformers
4. Coil Structure: Toroidal

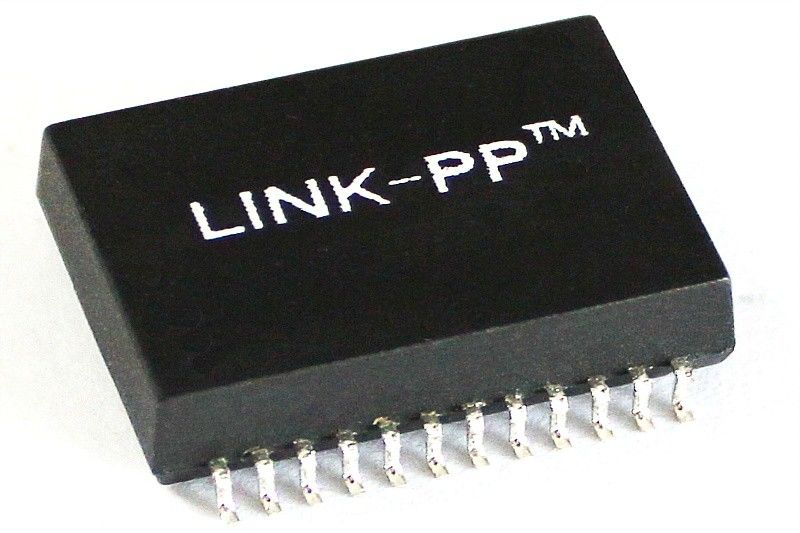

5. LINK-PP LP5007NLE
Electrical Specifications (25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec
Chip side to Line side
Applications
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
100% test
Flexible delivery time
