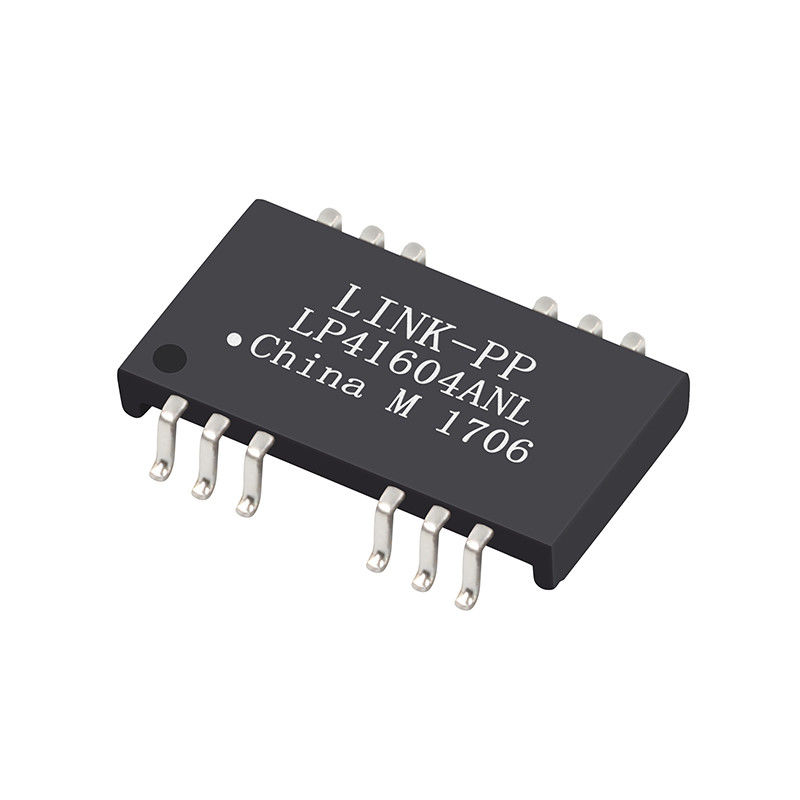

13F-38NL Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL

China 13F-38NL Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL supplier

Large Image :  13F-38NL Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 13F-38NL

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN: 13F-38NL Transformer Type: Isolation And Data Interface
Turns Ratio: 1CT : 1CT Size / Dimension: 12.70mmX9.65mmX2.29mm
Hipot: 1500V Mass Production: LP41604ANL

13F-38NL Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL

13F-38NL

Cross LP41604ANL

10/100B

Datasheet/Price/Specification/3D

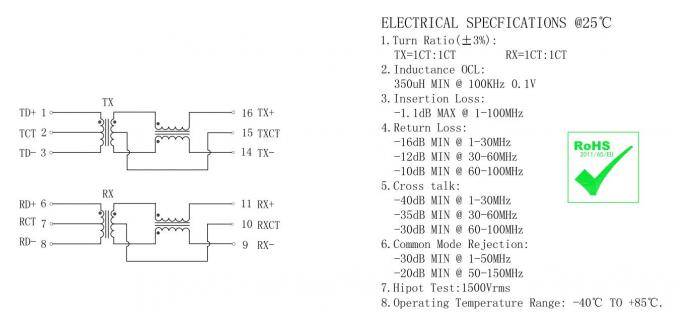

Feature

  1. 13F-38NL Magnetic designs to support every PHY. LP41604ANL
  2. Complies with IEEE 802.3 standards including 350 uH min OCL with 8mA bias.
  3. Comply with RoHS requirements-whole part No Cd, No Hg,
  4. No Cr6+, No PBB and PBDE and No Pb on external pins.



13F-38NL Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL



NOTES:
1.Designed to support application,such as SOHO(ADSLmodems),LAN-on-Motherboard(LOM),hub and        Switches.
2.Meets IEEE 802.3 specification.
3.Maximun reflow temperature is 260℃,10s,3 times.



13F-38NL Ethernet Magnetic Transformer 10/100 Base-T Compatible LP41604ANL
