H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

China H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL supplier

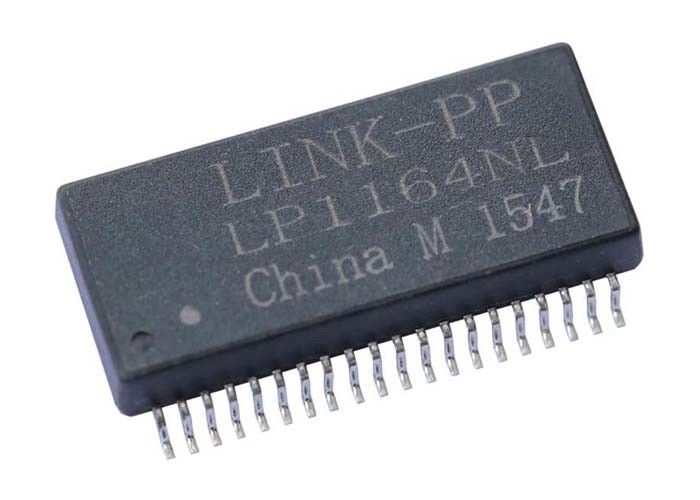

Large Image :  H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: H4001CG

Payment & Shipping Terms:

Minimum Order Quantity: 1000/1500
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: Paypal , T/T
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: H4001CG Cross: SM-LP1164NL
Application: Industry Workgroup Switches Pins: 40Pins
Port: Quad Port Transformers Hipot: 1500V

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

H4001CG Transformer

Trader Part Number

H4001CG

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

Made in China

SM-LP1164NL

Manufacturer

LINK-PP China

Description

Rj45 Transformer 4 port 10/100BT

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

2,000 PCS or 4 weeks



Archivi Disponibili : DF/3D/ISG/Stp/Step/Datasheet

H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL

Electrical Specification @25℃

1.Turns Ratio(±5%):
  TX=1CT∶1CT        RX=1CT∶1CT
2.Insertion Loss:
  0.1-100MHz:-1.0dB MAX
3.Return Loss(dB MIN):
  2-30MHz:-18;   40MHz:-14.4
  50MHz:-13.1;   60-80MHz:-12
4.Crosstalk(dB MIN):
  0.1MHz:-55;    30MHz:-45
  60MHz:-40;     100MHz:-33
5.DCMR(dB MIN):
  1-60MHz:-37;   60-200MHz:-25
6.Hipot: 1500Vrms
7.Operating Temperature: 0℃~70℃.



H4001CG Cross Quad Port 10/100Base-TX Transformer Modules LP1164NL
