000-7315-37R-LF1 / 749010014 SMT LAN Transformer 10 / 100 Base - TLP1198NL

China 000-7315-37R-LF1 / 749010014  SMT LAN Transformer 10 / 100 Base - TLP1198NL supplier
000-7315-37R-LF1 / 749010014  SMT LAN Transformer 10 / 100 Base - TLP1198NL supplier 000-7315-37R-LF1 / 749010014  SMT LAN Transformer 10 / 100 Base - TLP1198NL supplier

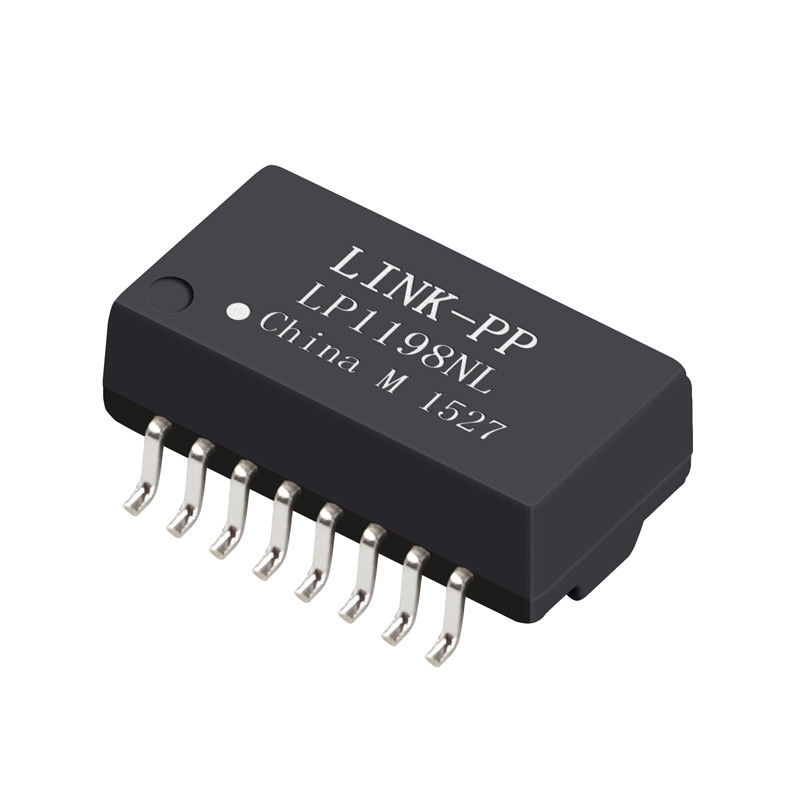

Large Image :  000-7315-37R-LF1 / 749010014 SMT LAN Transformer 10 / 100 Base - TLP1198NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 000-7315-37R-LF1 / 749010014

Payment & Shipping Terms:

Minimum Order Quantity: 2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 4 weeks
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: 000-7315-37R-LF1 / 749010014 Inductance: 350µH
Turns Ratio: 1 : 1 Mounting Type: Surface Mount
Dimension: 12.70 Mm X 9.30 Mm X 6.20 Mm Mass PN: LP1198NL

000-7315-37R-LF1 / 749010014 10/100Base-T SMT LAN Transformer LP1198NL



000-7315-37R-LF1 / 749010014



Specifications 000-7315-37R-LF1 / 749010014
Transformer Type DATACOM TRANSFORMER
Application SIGNAL
Approvals UL
Insertion Loss 1.1 dB
Manufacturer Series 749010014 Equivalent Cross
Mounting Feature SURFACE MOUNT
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Physical Dimension 12.7mm x 9.3mm x 6.20mm
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Application GENERAL PURPOSE
Approvals UL

 000-7315-37R-LF1 / 749010014  SMT LAN Transformer 10 / 100 Base - TLP1198NL000-7315-37R-LF1 / 749010014  SMT LAN Transformer 10 / 100 Base - TLP1198NL

Frequency Range: 500 kHz to 100 MHz
Inductance: 350 uH
Isolation Voltage: 1500 VAC
Operating Temperature Range: - 40 C to + 85 C
Package / Case: 12.95 mm x 7.11 mm x 5.33 mm
Length: 12.95 mm
Width: 7.11 mm
Height: 5.33 mm
Packaging: Reel
Brand: LINK-PP Equivalent
Current Rating: 8 mA
Maximum DC Current: 8 mA
Product Type: Surface Mount Transformer
