HR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NL

China HR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NL supplier

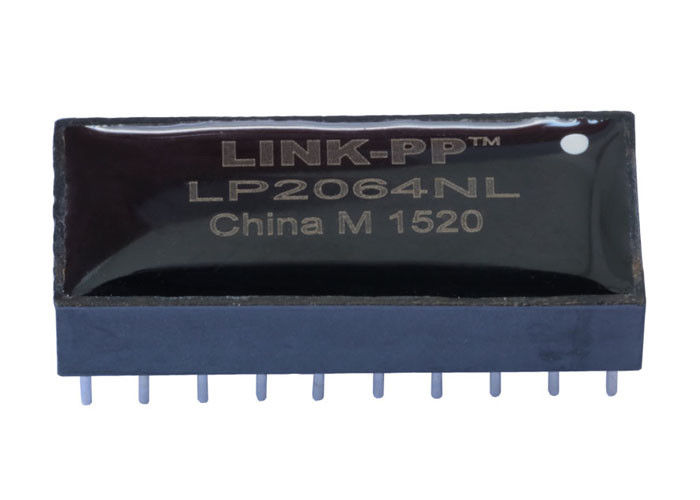

Large Image :  HR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HR612004

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
PN.1: HR612004 Transformer Type: Isolation And Data Interface
Turns Ratio: 1CT : 1CT Size / Dimension: 25.40mm L X101.10mm W
Hipot: 1500V Mass Production: LP2064NL

HR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NL

HR612004

Cross LP2064NL

10/100 2 Port Transformer

Datasheet/Price/Specification/3D



Feature:

10/100 BASE-T MAGNETICS MODULES P/N: HR612004 DATASHEET
●Dual Port transformer Modules (10/100 Base-TX) for Auto MDI/MDIX applications.
●Compatible with IEEE 802.3 and ANSI X3.236 standard
  including baseline wander compensation specification OF
  350uH OCL when Biased at 8mA from 0℃ ℃ to 70 ℃.
●Availiable in Through Hole package.
●Operating Temperature range: 0℃ ℃ to +70 ℃
●Storage temperature range: -25℃ ℃ to +125 ℃



NOTES:
1.Designed to support application,such as SOHO(ADSL
   modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS"NL" peak solder rating 260℃%%P5℃.



HR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NL

HR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NLHR612004 Dual Port Transformer Modules Through Hole 10/100 Base-TX LP2064NL
