Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XTFZ-DHD2401CC1-JU
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Item No: |
XTFZ-DHD2401CC1-JU |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
17.7mm L X 15.8mm W |
Height - Seated (Max): |
6.6mm |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Item No: |
XTFZ-DHD2401CC1-JU |
Turns Ratio: |
1CT : 1CT |
Mounting: |
Surface Mount |
Size / Dimension: |
17.7mm L X 15.8mm W |
Height - Seated (Max): |
6.6mm |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

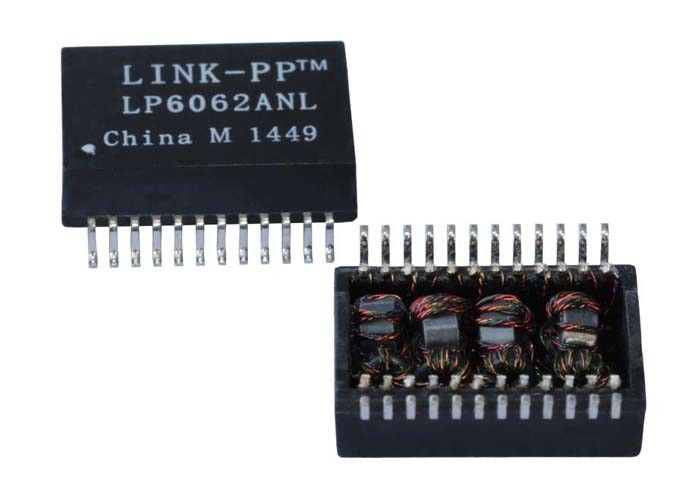

XTFZ-DHD2401CC1-JU | LP6062ANL | POE Transformer | 1000 Base-T SMT |
Competitive Advantage
☛ Designer and Manufacturer for 18 years.
☛ 2500 Works, 4 plants
☛ Definitely Pass Fluke network analyzer
☛ Stock or 4 weeks.
☛ Flexible design according to customers' required informations without any exral fee.
Number of ports | Applications | Turns Ratio | Power Over Ethernet |
Single GE/ Dual FE | 1G Ethernet | 1:1 | IEEE 802.3/IEEE 802.3af |
Packaging | Pins Number | Mounting Type | Isolation Voltage |
Reel , Carton | 24 Pins | SMT/SMD | 1500 Vrms |
NOTES:
1.Gigabit Transformer Modules With Power Over Ethernet Option
2.Meets IEEE 802.3af speciffcation
3.For RoHS part add suffix NL
4.RoHS"NL" peak solder rating 260℃%%P5℃.
5.100% Electrical Testing
