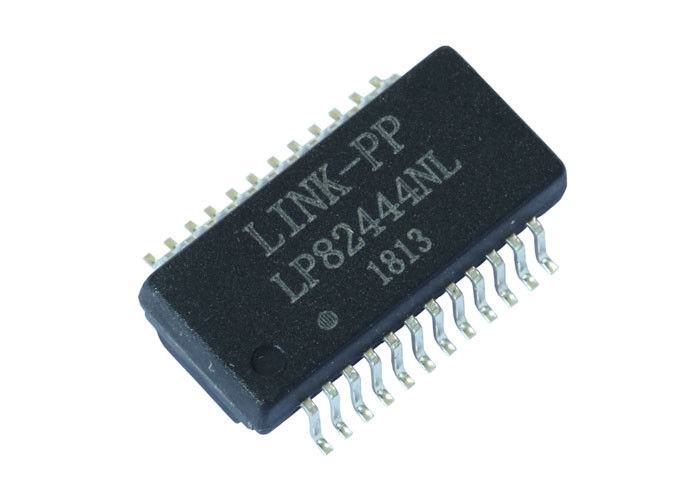

TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL

China TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL supplier
TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL supplier TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL supplier

Large Image :  TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG111-S12NYNRL

Payment & Shipping Terms:

Minimum Order Quantity: 800/2400
Price: Supportive
Packaging Details: 800PCS/Reel,7Reels=5600PCS=35.5*35.5*35cm=9.5 KG/Carton
Delivery Time: Stock or 4 weeks
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specification: TG111-S12NYNRL Updated PN: LP82440NL
Speed: 10/100/1000Base-T Number Of Ports: Single
Application: Lan Ethernet(NoN PoE) PIN Number: 24
Temperature: 0°C - 70°C Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet

TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL



TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL
LINK-PP Part Number LP82444NL
Specification TG111-S12NYNRL
Speed 1x10/100/1000Base-T
Number of Ports Single 1x1
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0℃ TO 70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Electrical Specifications @25℃
1.Turn Ratio(TX/RX):
Pri:Sec=1CT:1CT ±2%

2.Inductance OCL: 350uH Min
@100KHz/0.1V 8mA DC BLAS
3.Insertion Loss:
1-100MHz:-1.1dB Max
4.Return Loss:
1-40MHz:-18dB Min
60MHz:-14.dB Min
80MHz:-12dB Min
100MHz:-10dB Min
5.Crosstalk:
1-30MHz:-50dB Min
60MHz:-45dB Min
100MHz:-40dB Min
6.DCMR:
1-100MHz:-40dB Min
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: 0℃~70℃

TG111-S12NYNRL Gigabit Ethernet Transformer 1000Base-T Magnetic Module LP82444NL



NOTES
1.DESIGNED FOR GIGABIT TRANSCEIVERS
2.PEAK REFLOW TEMPERATURE RATING 260℃
3.MAGNETICS,DESIGNED FOR GIGABIT PHY USED
IN BACKPLANE
4.COMPLIANT WITH IEEE 802.3AB STANDARD
