HR602401 10/100Base-T Ethernet Single Port Transformer Module LP2019ANL

China HR602401 10/100Base-T Ethernet Single Port Transformer Module LP2019ANL supplier
HR602401 10/100Base-T Ethernet Single Port Transformer Module LP2019ANL supplier HR602401 10/100Base-T Ethernet Single Port Transformer Module LP2019ANL supplier

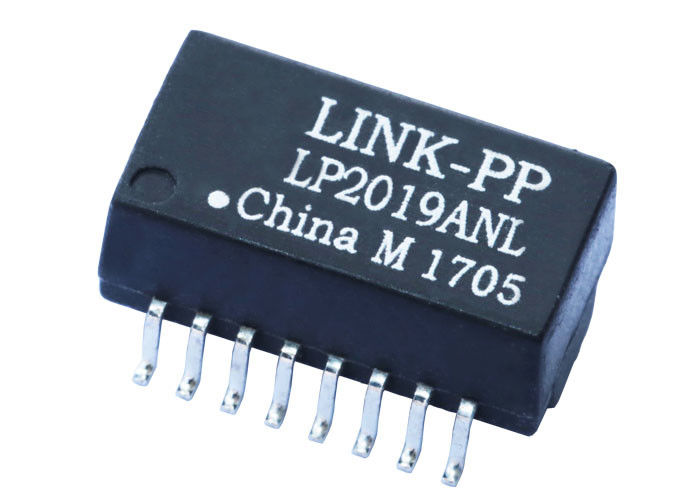

Large Image :  HR602401 10/100Base-T Ethernet Single Port Transformer Module LP2019ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HR602401

Payment & Shipping Terms:

Minimum Order Quantity: 1500/5000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
PN: HR602401 Compatible: LP2019ANL
Interface: 10/100Base-T Port: Single SMD
Pins: 16 Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

HR602401 10/100Base-T Ethernet Single Port Transformer Module LP2019ANL

Pin to pin HR602401

Factory PN

LP2019ANL

Price Break

Unit Price

Extended Price

1-5

A-F

-

10-50

B

-

100-500

C-1

-

1,000-2,500

Supportive

-

5,000

Dynamic

Dynamic

10,000

Dynamic

Dynamic

50,000

 Negotiable

Negotiable

100,000

 Negotiable

Negotiable

500,000

 Negotiable

Negotiable

Cross References

Alternative to HR602401

L/T

Stock

Description

SIN Magnetics 10/100 SMT

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

500000 pcs


Part Number ARJ11B-MASAZ-LU2
Turns Ratio ±5% TX 1CT:1CT RX 1CT:1CT
Insertion Loss (dB max) -1.4dB MIN @ 0.1-100MHz
Return Loss (dBmin @ 100Ω±15Ω) -16dB MIN @ 1-30MHz
-14dB MIN @ 40MHz
-13dB MIN @ 50MHz
-12dB MIN @ 60-80MHz
Crosstalk (dB min) -45dB MIN @ 30MHz
-40dB MIN @ 60MHz
-35dB MIN @ 100MHz
Common Mode Rejection (dB min) -43dB MIN @ 30MHz
-37dB MIN @ 60MHz
-33dB MIN @ 100MHz
HiPot @ 1500 Vrms
Operating temperature range: -40°C-+85°C
