XTFZ-DGD4802HB3 / XTFZ-M3076-C SMD Dual Port Gigabit Ethernet Transformer LP5012NL

China XTFZ-DGD4802HB3 / XTFZ-M3076-C SMD Dual Port Gigabit Ethernet Transformer LP5012NL supplier

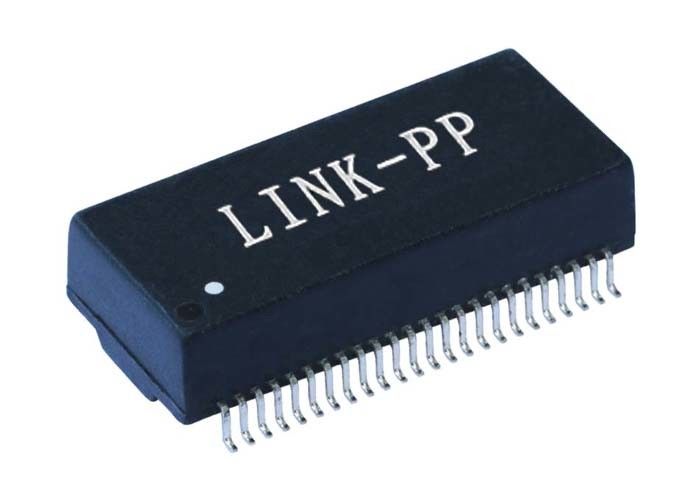

Large Image :  XTFZ-DGD4802HB3 / XTFZ-M3076-C SMD Dual Port Gigabit Ethernet Transformer LP5012NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: XTFZ-DGD4802HB3 / XTFZ-M3076-C

Payment & Shipping Terms:

Minimum Order Quantity: 1600/2400
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Specifications: XTFZ-DGD4802HB3 / XTFZ-M3076-C P/N Cross: LP5012NL
Ethernet: 2x 10/100/1000BaseT Application - LAN: ETHERNET (NoN PoE)
Samples: Free Files: Datasheet / PDF /3D Step , IGS

XTFZ-DGD4802HB3 / XTFZ-M3076-C SMD Dual Port Gigabit Ethernet Transformer LP5012NL



LINK-PP Cross LP5012NL
REACH Compliant Yes
EU RoHS Compliant Yes
POE Suitable for Power over Ethernet applications
Status Active
Transformer Type DATACOM TRANSFORMER
Application 1000 BASE-T; LAN Dual
Approvals UL
Insertion Loss 2.0 dB
Isolation Voltage 1500.0 V
Specification XTFZ-DGD4802HB3 / XTFZ-M3076-C
Mounting Feature SURFACE MOUNT
Number of Port Dual Port
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method TAPE & REEL
Physical Dimension L27.81XB12.2XH7.24 (mm)
Primary Inductance 350.0 µH
Turns Ratio (Np:Ns) 1:1; 1:1
Height 7.00 mm
Length 28.00 mm
Width 15.40mm
Additional Feature PHYSICAL DIMENSION INCLUDES HIGHT TERMINAL ALSO



XTFZ-DGD4802HB3 / XTFZ-M3076-C SMD Dual Port Gigabit Ethernet Transformer LP5012NL XTFZ-DGD4802HB3 / XTFZ-M3076-C SMD Dual Port Gigabit Ethernet Transformer LP5012NL
