Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H5084NL / HX5084NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$2.2
Packaging Details: T&R
Delivery Time: 5-8 working days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 5KK/Month
Series: |
H5084NL / HX5084NL Pulse Transformers |
Construction: |
Open Frame |
PoE Rating: |
4pair PoE 30W |
Apllication: |
10/100/1000Mbps |
Original Munafactuer: |
LINK-PP LP82440ANL |
Free Samples: |
Available |
Series: |
H5084NL / HX5084NL Pulse Transformers |
Construction: |
Open Frame |
PoE Rating: |
4pair PoE 30W |
Apllication: |
10/100/1000Mbps |
Original Munafactuer: |
LINK-PP LP82440ANL |
Free Samples: |
Available |

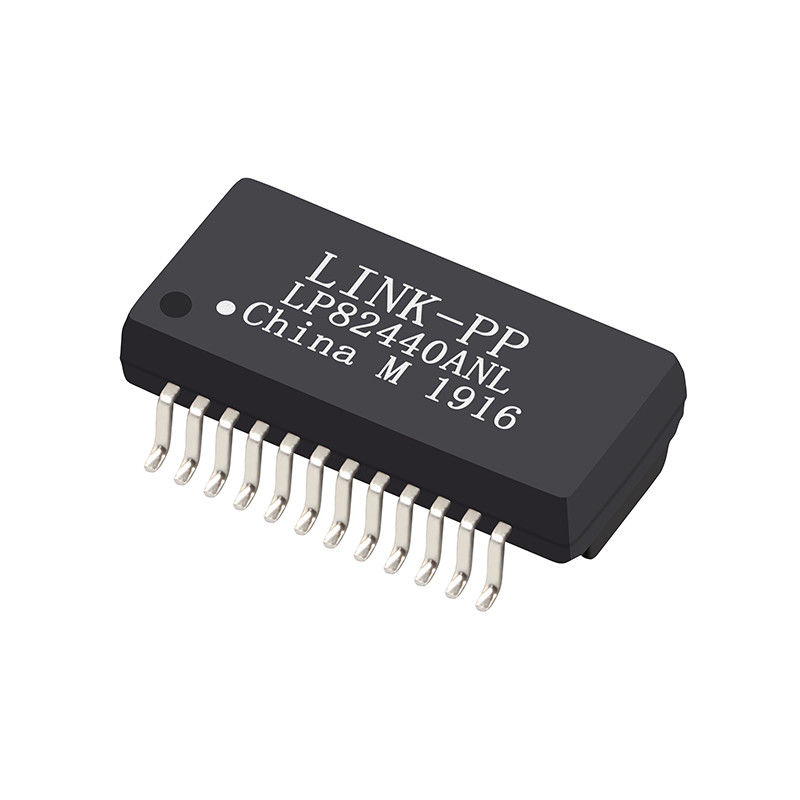

H5084NL / HX5084NL Ethernet Magnetics Transformer Overview:
|
PN# |
Manufacturer Part Number |
Manufacturer |
Description |
|
H5084NL / HX5084NL |
LP82440ANL
|
LINK-PP |
1000 Base-T Ethernet Magnetics |
|
|
|||
|
Series |
Transformer Type |
Speed |
Turn Radio |
|
PoE Transformer |
Isolation and Data Interface |
10/100/1000 Base-T |
1:1 |
|
|
|||
|
Mounting Type |
Size / Dimension |
Height - Seated (Max) |
Application |
|
Surface Mount |
15.24mm x 10.287mm x 4.14mm |
4.00mm |
PoE |
|
Electrical Specifications @25℃
2. Inductance OCL: 350uH Min 100MHz:-10dB Min 8. Operating Temperature: -40℃ ~ +85℃ |
|||
Notes for Single-Port 1000 BASE-T Transformer:
1. RoHS Compliant: Ensures environmentally friendly and lead-free manufacturing.
2. Header Material: Constructed from thermoset plastic with a flammability rating of UL 94V0 or better, providing enhanced safety and reliability.
3. Storage Temperature: Can be stored within a temperature range of -20°C to +125°C.
4. Compliance to J-STD Standards:
5. Packaging: Available in Tape & Reel packaging for efficient handling and automated assembly.
H5084NL Schematics:
H5084NL Dimension:
