Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX1300FNL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
HX1300FNL |
Pin To Pin: |
LP41696ANL |
Apllication: |
10/100base-T |
Dimension: |
12.70x9.30x6.20mm |
Temperature: |
-40℃ TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
HX1300FNL |
Pin To Pin: |
LP41696ANL |
Apllication: |
10/100base-T |
Dimension: |
12.70x9.30x6.20mm |
Temperature: |
-40℃ TO + 85℃ |
Archivi Disponibil: |
PDF/3D/ISG/Stp/Step/Datasheet |

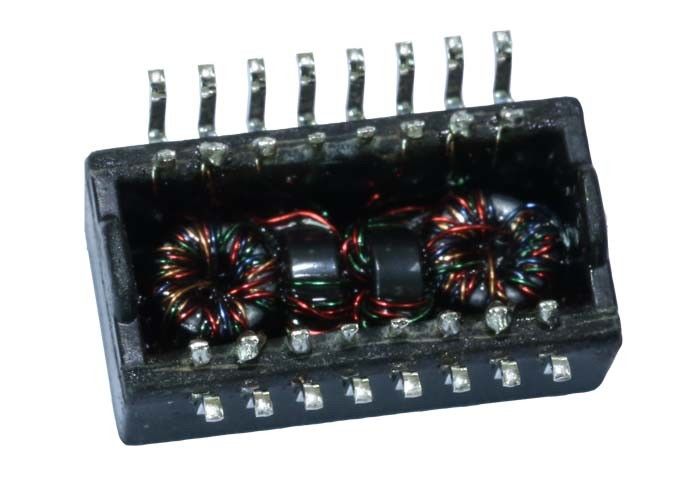

Product Features:
| Pin to Pin LP41696ANL | |
| LINK-PP Part Number | LP41696ANL |
| Cross Part Number | HX1300FNL |
| Mounting | Surface Mount |
| Family | 100/1000M Magnetics |
| Transformer Type | Isolation Transformer |
| Package Type | SMD |
| Maximum OCL Inductance | 0.35 mH |
| Maximum Isolation Voltage | 1500 Vrms |
| Turns Ratio | 1:1 |
| Operating Temperature | -40 to 85 °C |
| Packaging | Tape and Reel |
| Maximum Insertion Loss | -1.1@1MHz to 100MHz dB |
| Product Length | 12.70 mm |
| Product Width | 9.30mm |
| Product High | 6.20mm |
|
|
