Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: G48503MN
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
G48503MN |
P/N: |
LP5012NL |
Mounting: |
SMD |
Ethernet: |
2 X 10/100/1000Mbps |
Measure: |
28.00x15.40x7.00mm |
Samples: |
Free |
Specifications: |
G48503MN |
P/N: |
LP5012NL |
Mounting: |
SMD |
Ethernet: |
2 X 10/100/1000Mbps |
Measure: |
28.00x15.40x7.00mm |
Samples: |
Free |

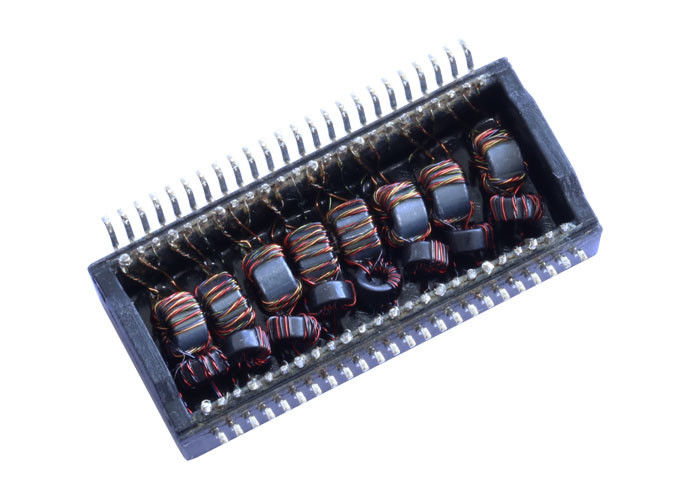

1. Two Port Gigabit LP5012NL
2. Isolation Voltage:1500Vrms
3.Type:SMT 48pins Magnetics
4. Coil Structure: Toroidal
1000 Base-T Dual Ports Transformer Modules
| Dual Port, 1000 BASE-T Ethernet Transformer Modules, SMD,Rohs | |
| LINK-PP Part Number: | LP5012NL |
| Speed: | 1000BASE-T |
| Number of Ports: | DUAL |
| Application - LAN: | ETHERNET (NoN PoE) |
| Package: | SMD |
| Temperature: | 0 TO + 70 |
| AutomDX: | YES |
| Comment: | SAME AS NL VERSION |
| Configuration RX: | T,C,S |
| Configuration TX: | T,C,S |
| Construction: | OPEN FRAME |
| Cores Per Port: | 24 |
| Package Height (Inches): | 0.276 |
| Package Height (mm): | 7.00 |
| Package Length (Inches): | 1.102 |
| Package Length (mm): | 28.00 |
| Package Width (Inches): | 0.606 |
| Package Width (mm): | 15.40 |
| Turns Ratio RX: | 1CT:1CT |
| Turns Ratio TX: | 1CT:1CT |
Applications:
Used for networking and communication equipments such as HUB, PC card,
Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
