TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL

China TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL supplier
TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL supplier TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL supplier TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL supplier TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL supplier

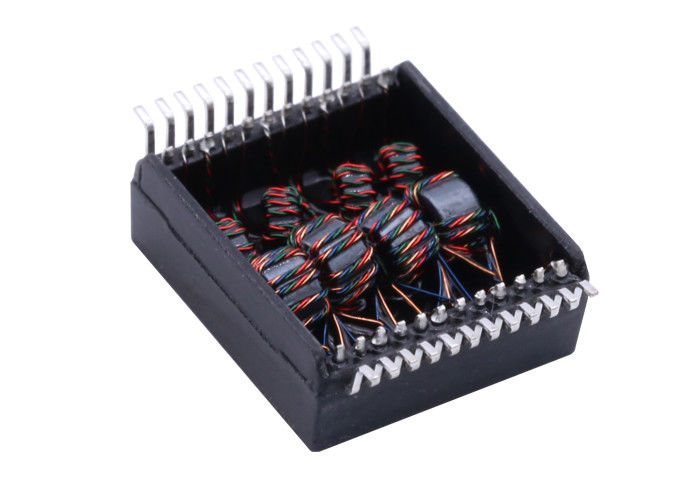

Large Image :  TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: TG1G-E001NY

Payment & Shipping Terms:

Minimum Order Quantity: 1000/2000
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: Paypal , T/T, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specification: TG1G-E001NY Part No: LP5015ANL
Family: Gigabit Ethernet Transformer Pins: 24 Pins
Samples: Free Available Archivi Disponibili: PDF/3D/ISG/Stp/Step/Datasheet

TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL



  • LINK-PP LP5015ANL 10/100/1000Base-T Filter Magnetic
  • Cross TG1G-E001NY Pulse Transformer
  • Gigabit Ethernet Transformer Connection  Single Port Transformer Module
  • 24Pins Surface Mounting



Electrical Specification @25℃
1.OCL(100KHz,0.1Vrms,8mA):350uH
2.Turns Ratio: 1CT:1CT
3.Insertion Loss:
1-100MHz:-1.0dB max
4.Return Loss(dB min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
5.Crosstalk(dB min):
30MHz:-43 60MHz:-37
100MHz:-33
6.CMR: 0.1-100MHz:-40dB typ
7.Isolation Voltage: 1500Vrms
8.Operating Temperature: -40℃~+85℃.
TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL
TG1G-E001NY Gigabit Ethernet Transformer Single Port 10/100/1000Mbps LP5015ANL
