HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL

China HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL supplier
HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL supplier HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL supplier

Large Image :  HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: HX5019BNL

Payment & Shipping Terms:

Minimum Order Quantity: 2000/5000
Price: Supportive
Packaging Details: Tape & Teel
Delivery Time: Stock
Payment Terms: T/T, Western Union
Supply Ability: 3000K/month
Contact Now
Detailed Product Description
Item: HX5019BNL Cross P.N: LP5019ANL
Pin No: 24 Pins Series: Single Port GigE Transformer
Termination Style: SMD/SMT Isolation Voltage:: 1500V
Samples: Free Offer Cross Part: HX5019BNL = LP5019ANL

HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL



Features

■ Ethernet Magnetic Transformers LP5019ANL Equivalent to XFGIB100POL
■ Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
■ Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
■ Low profi le surface mount packaging designed for refl ow process (245 ° peak)
■ Supports 4 pairs of Category 5 UTP cables



Mfr Package Description
ROHS COMPLIANT
REACH Compliant
Yes
EU RoHS Compliant
Yes
Status
Active More than 20 Years
Transformer Type
DATACOM TRANSFORMER
Application
LAN; 10/100/1000 BASE-T; ETHERNET
Isolation Voltage
1500.0 V
LINK-PP Cross
LP5007NL Series  Equivalent Cross
File Available
Datasheet / PDF , 3D Step / IGS
Manufacturer Series
PT61020EL  Cross Pin to Pin Analogue
Mounting Feature
SURFACE MOUNT
Number of Functions
4
Operating Temperature-Min
-40.0 Cel
Operating Temperature-Max
85.0 Cel
Packing Method
TAPE & REEL 350pcs/Reel
Physical Dimension
L17.62XB12.2XH6.0 (mm)
Primary Inductance
350.0 µH
Terminal Finish
TIN
Turns Ratio (Np:Ns)
1CT:1; 1CT:1
Height
2.54 mm

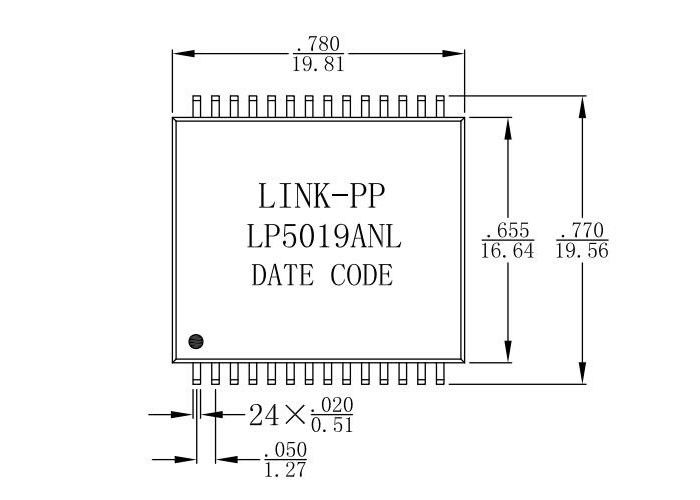

Length
19.81 mm
Width
19.56 mm
Additional Feature
HIGHT DIMENSION INCLUDES TEMINAL ALSO

HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANLHX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL


HX5019BNL Alternative Low Profile Gigabit Ethernet Transformers LP5019ANL
