30F-30NL Ethernet 10/100/1000 BASE-T Magnetics Transformers For PC Card LP82445NL

China 30F-30NL Ethernet 10/100/1000 BASE-T Magnetics Transformers For PC Card LP82445NL supplier

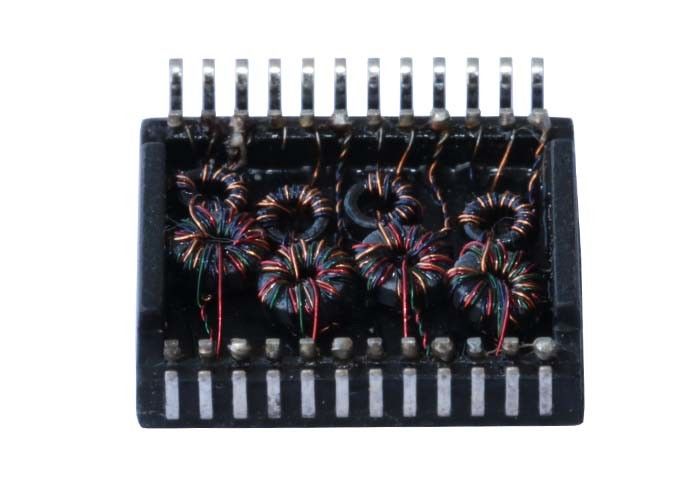

Large Image :  30F-30NL Ethernet 10/100/1000 BASE-T Magnetics Transformers For PC Card LP82445NL

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO,UL,Reach,SGS,RoHS
Model Number: 30F-30NL

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Supportive
Packaging Details: Reel Package
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: 30F-30NL Specification: LP82445NL
Application: Lan Ethernet (NoN PoE) Apllication: 10/100/1000 Base-T
Original Munafactuer: LINK-PP Project Application: NETWORK INTERFACE CARD

30F-30NL Ethernet 10/100/1000 BASE-T Magnetics Transformers For PC Card LP82445NL

Competitor Cross Reference



Single Port,1000 BASE-T Ethernet Transformer Modules,SMD,Rohs
LINK-PP Part Number LP82445NL
YDS Part Number 30F-30NL
Speed 1000BASE-T
Number of Ports SINGLE
Application - LAN ETHERNET (NoN PoE)
Package SMD
Temperature 0 TO +70℃
AutomDX YES
Comment SAME AS NL VERSION
Configuration RX T,C,S
Configuration TX T,C,S
Construction OPEN FRAME
Cores Per Port 8
Package Height (Inches) 0.100
Package Height (mm) 2.54
Package Length (Inches) 0.780
Package Length (mm) 19.81
Package Width (Inches) 0.655
Package Width (mm) 16.64
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Single Port

10/100/1000 BASE-T Ethernet Transformer Modules LP82445NL
  • 30F-30NL =>   LP82445NL【Mass Production Model】
  • RoHS Compliant
  • RoHS peak solder rating 260 ℃/ 3~5 Sec
  • Designed to meet IR requirement
  • Specifications @ 25 ℃
  • Operating temp. :-40 ℃ ~ +85 ℃
  • OCL :350uH Min @100Khz , 100mV 8mA
  • Helps manufacturers reach their goals of cost reduction






Wish To Be Your Best Supplier and Supporter In Your Networking Solutions

------------- LINK-PP Sales & Support Team




----------------------Welcome To Your Enquiry. We Are Available, Always and Sincerely-------------------
